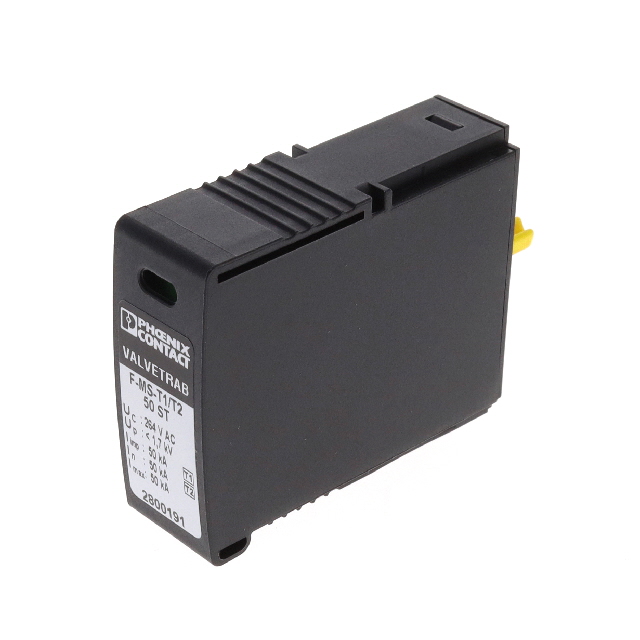

2800191
ActivePhoenix Contact
SPD TYPE 1/TYPE 2 264VAC MCOV
2800191
ActivePhoenix Contact
SPD TYPE 1/TYPE 2 264VAC MCOV
Description
General part information
2800191
SPD TYPE 1/TYPE 2 264VAC MCOV
Technical Specifications
Parameters and characteristics for this part
| Specification | 2800191 |
|---|---|
| Approval Agency | EAC, CB, cUL, cULus, CCA, GL, OVE, UL, KEMA-KEUR |
| Current - Discharge (Max) | 50 kA |
| Current - Discharge (Nom) | 20 kA |
| Form | Module Only |
| Mounting Type | Base Mount |
| Number of Poles | 1 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Type | Type 1, Type 2 |
| Voltage - Continuous Operating (Max) (MCOV) | 264 VAC |
| Voltage - Protection Level (VP) (2416) | 1.7 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
