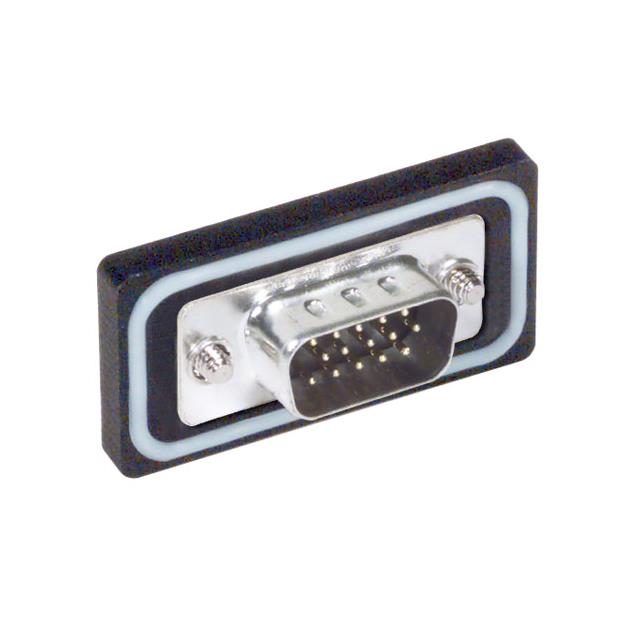

Specification	WPSDH15P

Color	Blue
Connector Layout	High Density, DE, E
Connector Style	High Density, D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Form	Machined
Contact Type	Signal
Features	Grounding Indents
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Panel Mount
Number of Positions	15
Number of Rows	3
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Shell Size	1
Termination	Solder Cup
Wire Gauge (AWG) (Max)	30 AWG
Wire Gauge (AWG) (Min)	19.5 AWG
