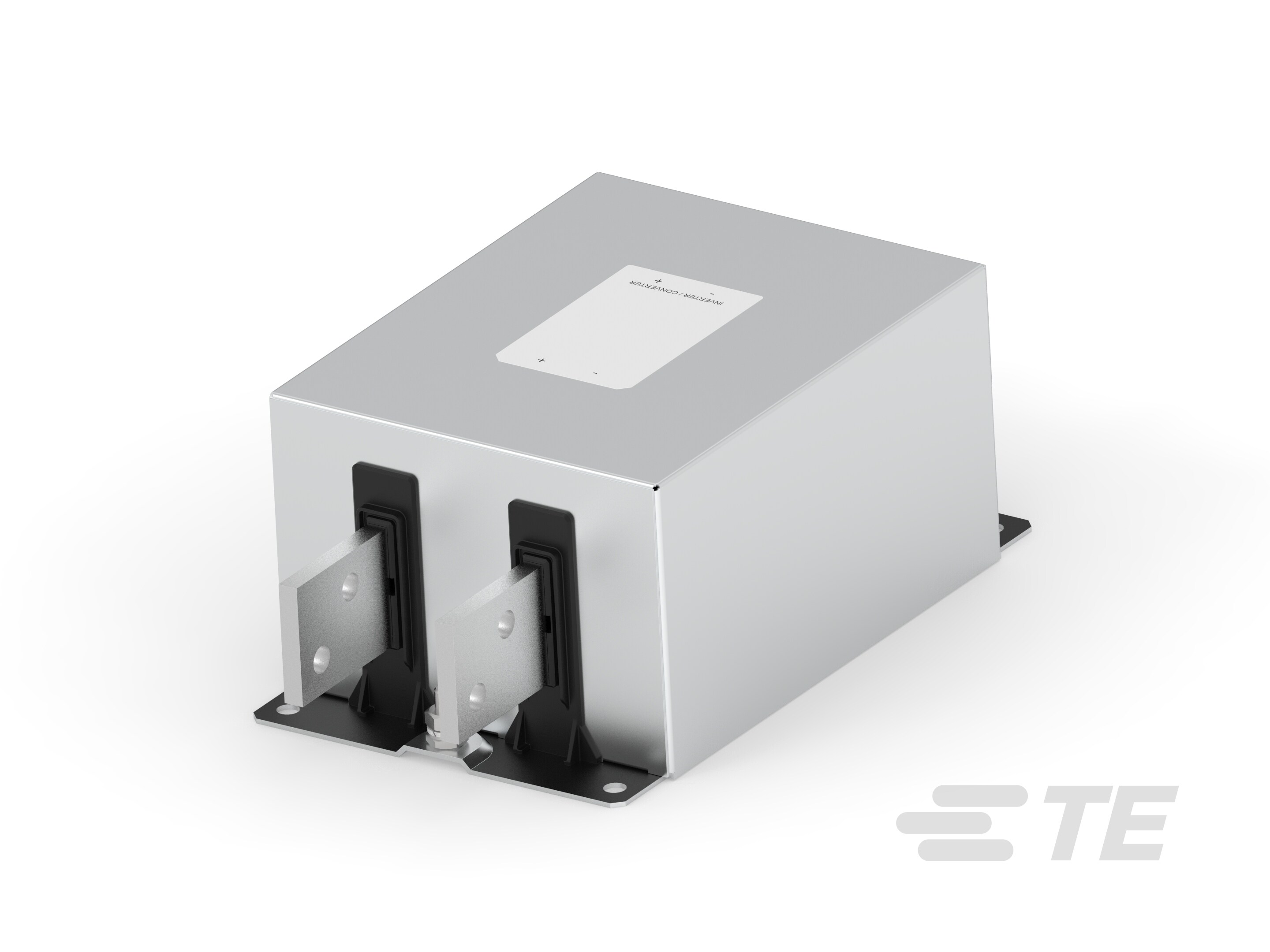

FN2210-1500-99-R5-814328-SF

FN2210-1500-99-R5

Active
TE Connectivity AMP Connectors

LINE FILTER 1000VDC 1.5KA CHASS

Find alt
FN2210-1500-99-R5-814328-SF

FN2210-1500-99-R5

Active
TE Connectivity AMP Connectors

LINE FILTER 1000VDC 1.5KA CHASS

Find alt

Description

General part information

Schaffner FN2210 Series

1500 A DC Filter, 1000 VDC, Busbar Input, Busbar Output, Schaffner FN2210

Technical Specifications

Parameters and characteristics for this part

SpecificationFN2210-1500-99-R5
ApplicationsInverters, Power Drive Systems
Approval AgencycURus, CE
ConfigurationSingle Stage
Current1500 A
Filter TypeDC
Frequency - OperatingDC
Mounting TypeChassis Mount
Operating Temperature (Max)100 °C
Operating Temperature (Min)-40 °C
Termination StyleTerminal Post
Voltage - Rated DC1000 V
