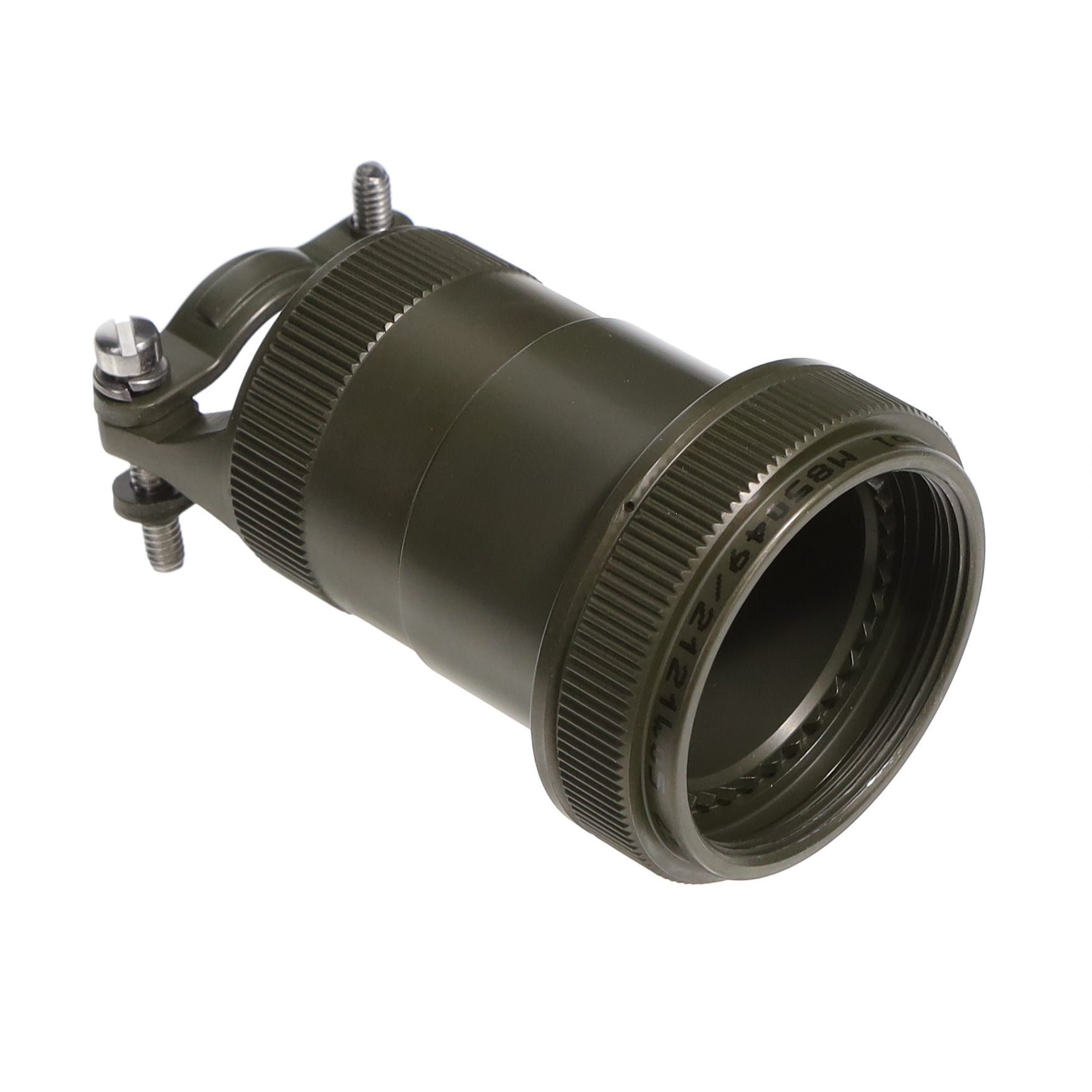

A850492121W05
ActiveMcGill Microwave Systems
BACKSHELL;NON ENV;CAD
A850492121W05
ActiveMcGill Microwave Systems
BACKSHELL;NON ENV;CAD
Description
General part information
A850492121W05
BACKSHELL;NON ENV;CAD
Technical Specifications
Parameters and characteristics for this part
| Specification | A850492121W05 |
|---|---|
| Cable Exit Angle | 180 ° |
| Cable Opening (Max) | 0.63 in |
| Cable Opening (Min) | 0.44 in |
| Color | Olive Drab |
| Diameter - Outside | 1.5 in |
| Features | Clamp Screws |
| Ingress Protection | Environment Resistant |
| Material | Aluminum Alloy |
| Plating | Cadmium |
| Primary Material | Metal |
| Shell Size - Insert | 21, G |
| Shielding | Unshielded |
| Type | Cable Clamp, Backshell |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
