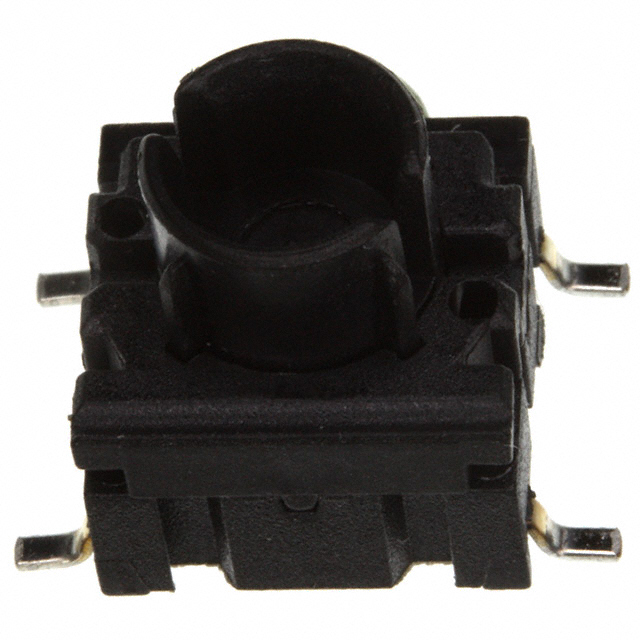

3FSH9

Active

MEC Switches

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3FSH9

Active

MEC Switches

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3FSH9	- Series

Actuator Height off PCB, Vertical	10.4 mm	10.4 mm
Actuator Height off PCB, Vertical	-	6.4 mm
Actuator Material	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS), Polybutylene Terephthalate (PBT)
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Plunger for Cap	Plunger for Cap, Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC	0.05 - 24 A
Features	Sealed - Flux Protection	Sealed - Flux Protection
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	10000000 Cycles	10000000 Cycles
Mounting Type	Surface Mount	Surface Mount, Through Hole
Operating Force	300 gf	300 gf
Operating Temperature [Max]	160 °C	115 - 160 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	10.1 mm	10.1 mm
Outline [y]	10.1 mm	10.1 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	1 mm	1 mm
Termination Style	Gull Wing	Gull Wing, PC Pin

- Series

SWITCH TACTILE SPST-NO 0.05A 24V

Part	Switch Function	Termination Style	Mounting Type	Circuit	Actuator Type	Ingress Protection	Actuator Height off PCB, Vertical	Operating Temperature [Min]	Operating Temperature [Max]	Operating Force	Actuator Orientation	Contact Rating @ Voltage	Mechanical Life	Outline [x]	Outline [y]	Actuator Material	Illumination	Features	Switch Travel	Actuator Height off PCB, Vertical [z]
MEC Switches 3FSH9	Off-Mom	Gull Wing	Surface Mount	SPST-NO	Plunger for Cap	IP67 - Dust Tight, Waterproof	10.4 mm	-40 °C	160 °C	300 gf	Top Actuated	0.05 A, 24 VDC	10000000 Cycles	10.1 mm	10.1 mm	Polyphenylene Sulfide (PPS)	Non-Illuminated	Sealed - Flux Protection	1 mm
MEC Switches 3ATL6	Off-Mom	PC Pin	Through Hole	SPST-NO	Plunger for Cap	IP67 - Dust Tight, Waterproof		-40 °C	115 °C	300 gf	Top Actuated	0.05 A, 24 VDC	10000000 Cycles	10.1 mm	10.1 mm	Polybutylene Terephthalate (PBT)	Non-Illuminated	Sealed - Flux Protection	1 mm	6.4 mm
MEC Switches 3ATH9	Off-Mom	PC Pin	Through Hole	SPST-NO	Plunger for Cap	IP67 - Dust Tight, Waterproof		-40 °C	160 °C	300 gf	Top Actuated	0.05 A, 24 VDC	10000000 Cycles	10.1 mm	10.1 mm	Polyphenylene Sulfide (PPS)	Non-Illuminated	Sealed - Flux Protection	1 mm	6.4 mm
MEC Switches 3CTH9	Off-Mom	PC Pin	Through Hole	SPST-NO	Standard	IP67 - Dust Tight, Waterproof		-40 °C	160 °C	300 gf	Top Actuated	0.05 A, 24 VDC	10000000 Cycles	10.1 mm	10.1 mm	Polyphenylene Sulfide (PPS)	Non-Illuminated	Sealed - Flux Protection	1 mm	6.4 mm
MEC Switches 3ETL9	Off-Mom	PC Pin	Through Hole	SPST-NO	Plunger for Cap	IP67 - Dust Tight, Waterproof		-40 °C	115 °C	300 gf	Top Actuated	0.05 A, 24 VDC	10000000 Cycles	10.1 mm	10.1 mm	Polybutylene Terephthalate (PBT)	Non-Illuminated	Sealed - Flux Protection	1 mm
MEC Switches 3CTL6	Off-Mom	PC Pin	Through Hole	SPST-NO	Standard	IP67 - Dust Tight, Waterproof		-40 °C	115 °C	300 gf	Top Actuated	0.05 A, 24 VDC	10000000 Cycles	10.1 mm	10.1 mm	Polybutylene Terephthalate (PBT)	Non-Illuminated	Sealed - Flux Protection	1 mm	6.4 mm
MEC Switches 3CSH9	Off-Mom	Gull Wing	Surface Mount	SPST-NO	Standard	IP67 - Dust Tight, Waterproof		-40 °C	160 °C	300 gf	Top Actuated	0.05 A, 24 VDC	10000000 Cycles	10.1 mm	10.1 mm	Polyphenylene Sulfide (PPS)	Non-Illuminated	Sealed - Flux Protection	1 mm	6.4 mm
MEC Switches 3ESH9	Off-Mom	Gull Wing	Surface Mount	SPST-NO	Plunger for Cap	IP67 - Dust Tight, Waterproof		-40 °C	160 °C	300 gf	Top Actuated	0.05 A, 24 VDC	10000000 Cycles	10.1 mm	10.1 mm	Polyphenylene Sulfide (PPS)	Non-Illuminated	Sealed - Flux Protection	1 mm
MEC Switches 3ASH9	Off-Mom	Gull Wing	Surface Mount	SPST-NO	Plunger for Cap	IP67 - Dust Tight, Waterproof		-40 °C	160 °C	300 gf	Top Actuated	0.05 A, 24 VDC	10000000 Cycles	10.1 mm	10.1 mm	Polyphenylene Sulfide (PPS)	Non-Illuminated	Sealed - Flux Protection	1 mm	6.4 mm
MEC Switches 3ETH9	Off-Mom	PC Pin	Through Hole	SPST-NO	Plunger for Cap	IP67 - Dust Tight, Waterproof		-40 °C	160 °C	300 gf	Top Actuated	0.05 A, 24 VDC	10000000 Cycles	10.1 mm	10.1 mm	Polybutylene Terephthalate (PBT)	Non-Illuminated	Sealed - Flux Protection	1 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.49
		10	$ 2.38
		50	$ 2.02
		100	$ 1.89
		250	$ 1.82

Description

General part information

- Series

Tactile Switch SPST-NO Top Actuated Surface Mount
