ST-SOT23-5
ActiveSchmalzTech, LLC

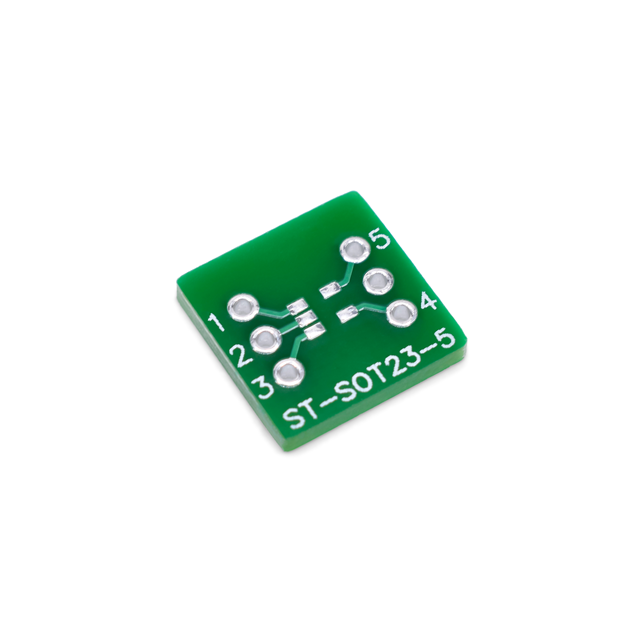

SOT23-5 SMD TO DIP ADAPTER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ST-SOT23-5
ActiveSchmalzTech, LLC
SOT23-5 SMD TO DIP ADAPTER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ST-SOT23-5 | ST-SOT23 Series |
|---|---|---|
| Board Thickness | - | 1.6 mm |
| Board Thickness | - | 0.063 in |
| Material | FR4 Epoxy Glass | FR4 Epoxy Glass |
| Number of Positions | 6 | 6 - 8 |
| Package Accepted | SOT23-5 | SOT-23, SOT23-5 |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Proto Board Type | SMD to DIP | SMD to DIP |
| Size / Dimension | - | 0.5 in |
| Size / Dimension | - | 0.6 in |
| Size / Dimension | - | 12.7 mm |
| Size / Dimension | - | 15.24 mm |
ST-SOT23 Series
SOT23-8 SMD TO DIP ADAPTER
| Part | Pitch [x] | Pitch [x] | Board Thickness | Board Thickness | Package Accepted | Proto Board Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Material | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
SchmalzTech, LLC ST-SOT23-8 | 2.54 mm | 0.1 in | 1.6 mm | 0.063 in | SOT-23 | SMD to DIP | 0.5 in | 0.6 in | 12.7 mm | 15.24 mm | FR4 Epoxy Glass | 8 |
SchmalzTech, LLC ST-SOT23-5 | 2.54 mm | 0.1 in | SOT23-5 | SMD to DIP | FR4 Epoxy Glass | 6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 5 | $ 1.99 | |
| 30 | $ 1.89 | |||
| 80 | $ 1.79 | |||
Description
General part information
ST-SOT23 Series
SOT23-5 SMD TO DIP ADAPTER
