Description
General part information

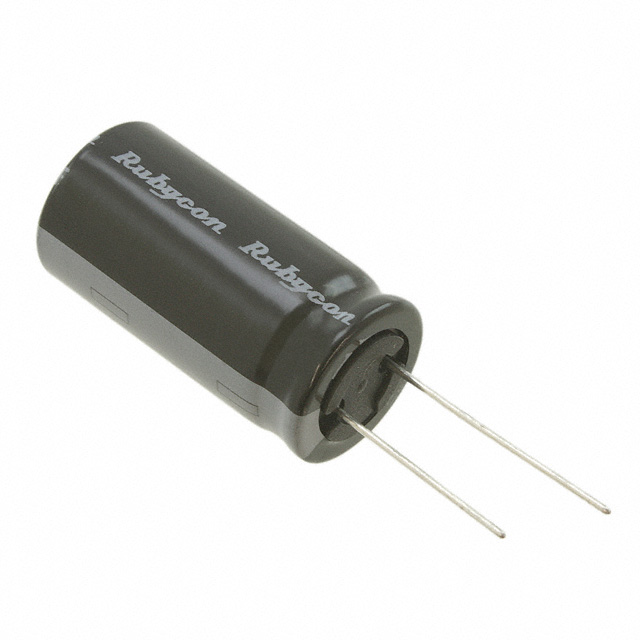

35WXA3300MEFC18X25
3300 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 35WXA3300MEFC18X25 |
|---|---|
| Applications | Automotive |
| Capacitance | 3300 µF |
| Height - Seated (Max) | 1.063 in |
| Lead Spacing | 0.295 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Ripple Current | 1.7135 A, 1.49 A |
| Size / Dimension Diameter | 0.709 in |
| Tolerance | 20 % |
| Voltage - Rated | 35 V |
