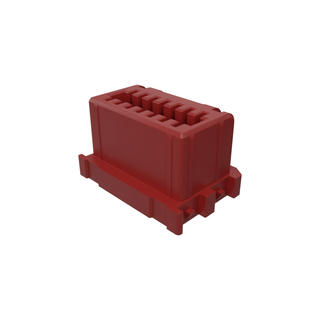

Specification	2145271402

Color	Red
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Terminal Position Lock (TPA)
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Number of Positions	14
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.049 in

214527 Series

Micro-Lock Plus TPA Type Receptacle Housing, 1.25mm Pitch, Dual Row, Positive Lock, 16 Circuits, Red

Part	Contact Termination	Number of Positions	Mounting Type	Number of Rows	Features	Fastening Type	Operating Temperature (Min)	Operating Temperature (Max)	Color	Insulation Material	Contact Type	Pitch	Connector Type

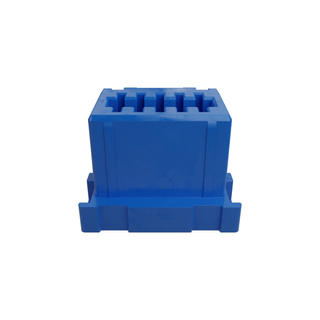

Molex 2145271004	Crimp	10	Free Hanging (In-Line)	2	Terminal Position Lock (TPA)	Latch Lock	-40 °C	105 °C	Blue	Polybutylene Terephthalate (PBT)	Female Socket	0.049 in	Receptacle
Molex 2145271200	Crimp	12	Free Hanging (In-Line)	2	Terminal Position Lock (TPA)	Latch Lock	-40 °C	105 °C	Natural	Polybutylene Terephthalate (PBT)	Female Socket	0.049 in	Receptacle

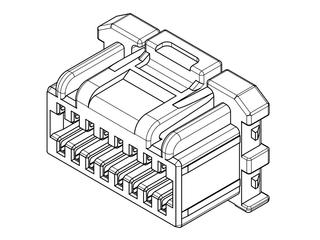

Molex 2145271400	Crimp	14	Free Hanging (In-Line)	2	Terminal Position Lock (TPA)	Latch Lock	-40 °C	105 °C	Natural	Polybutylene Terephthalate (PBT)	Female Socket	0.049 in	Receptacle
Molex 2145271000	Crimp	10	Free Hanging (In-Line)	2	Terminal Position Lock (TPA)	Latch Lock	-40 °C	105 °C	Natural	Polybutylene Terephthalate (PBT)	Female Socket	0.049 in	Receptacle
Molex 2145271201	Crimp	12	Free Hanging (In-Line)	2		Latch Lock	-40 °C	105 °C	Black	Polybutylene Terephthalate (PBT)	Female Socket	0.049 in	Receptacle
Molex 2145271600	Crimp	16	Free Hanging (In-Line)	2	Terminal Position Lock (TPA)	Latch Lock	-40 °C	105 °C	Natural	Polybutylene Terephthalate (PBT)	Female Socket	0.049 in	Receptacle
Molex 2145271204	Crimp	12	Free Hanging (In-Line)	2	Terminal Position Lock (TPA)	Latch Lock	-40 °C	105 °C	Blue	Polybutylene Terephthalate (PBT)	Female Socket	0.049 in	Receptacle
Molex 2145272402	Crimp	24 pos	Free Hanging (In-Line)	2	Terminal Position Lock (TPA)	Latch Lock	-40 °C	105 °C	Red	Polybutylene Terephthalate (PBT)	Female Socket	0.049 in	Receptacle
Molex 2145271001	Crimp	10	Free Hanging (In-Line)	2	Terminal Position Lock (TPA)	Latch Lock	-40 °C	105 °C	Black	Polybutylene Terephthalate (PBT)	Female Socket	0.049 in	Receptacle
Molex 2145271801	Crimp	18	Free Hanging (In-Line)	2		Latch Lock	-40 °C	105 °C	Black	Polybutylene Terephthalate (PBT)	Female Socket	0.049 in	Receptacle
