PDB-C144
ObsoleteAdvanced Photonix

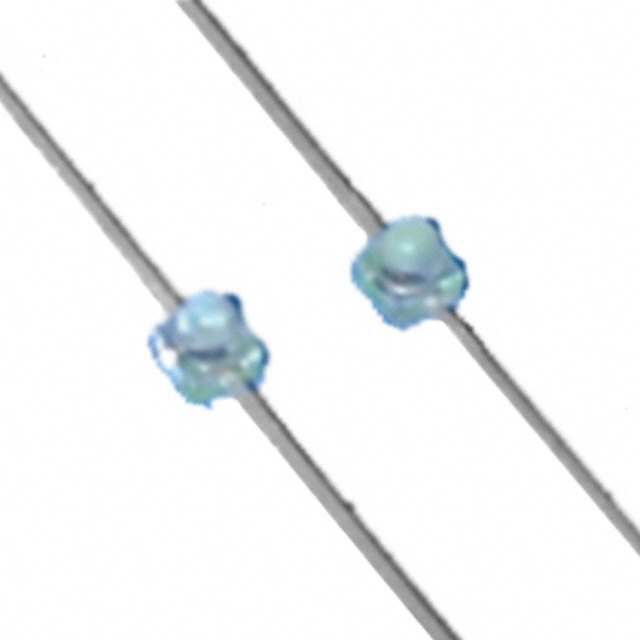

SENSOR PHOTODIODE 950NM AXIAL
PDB-C144
ObsoleteAdvanced Photonix
SENSOR PHOTODIODE 950NM AXIAL
Description
General part information
PDB-C144
Photodiode 950nm 6ns 48° Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | PDB-C144 |
|---|---|
| Active Area | 0.29 mm² |
| Color - Enhanced | Blue |
| Current - Dark (Typ) | 2 nA |
| Diode Type | Pin |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Axial |
| Response Time | 6 ns |
| Spectral Range (Maximum) | 1100 nm |
| Spectral Range (Minimum) | 700 nm |
| Viewing Angle | 48 ° |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
| Wavelength | 950 nm |
