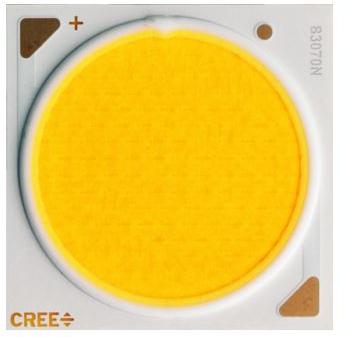

Cree LED-CXB3070-0000-000N0UY430H LED Modules Chip On Board LED Lighting Module

CXB3070-0000-000N0HBB30G

Active
CreeLED, Inc.

LED MODULES UNI-COLOR WHITE 2-PIN T/R

Find alt
Cree LED-CXB3070-0000-000N0UY430H LED Modules Chip On Board LED Lighting Module

CXB3070-0000-000N0HBB30G

Active
CreeLED, Inc.

LED MODULES UNI-COLOR WHITE 2-PIN T/R

Find alt

Description

General part information

CXB3070-0000-000N0HBB30G

LED MODULES UNI-COLOR WHITE 2-PIN T/R

Technical Specifications

Parameters and characteristics for this part

SpecificationCXB3070-0000-000N0HBB30G
CCT (K)3000 K
CCT Description3-Step MacAdam Ellipse
ColorWhite, Warm
ConfigurationSquare
CRI (Color Rendering Index)80
Current - Max2.8 A
Current - Test1.9 A
Height1.7 mm
Lens TypeFlat
Light Emitting Surface (LES) Diameter23 mm
Lumens/Watt143 lm/W
Luminous Flux9750 lm
Luminous Flux (Maximum)10000 lm
Luminous Flux (Minimum)9500 lm
Size / Dimension Length27.35 mm
Size / Dimension Width27.35 mm
Temperature - Test85 °C
TypeChip On Board (COB)
Viewing Angle115 °
Voltage - Forward (Vf) (Typ)36 V
