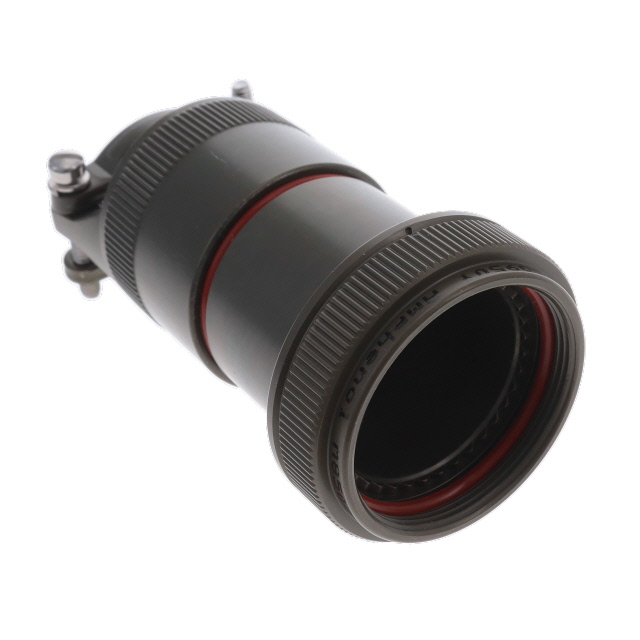

Specification	M85049/1821W06

Cable Exit Angle	180 °
Cable Opening (Max)	0.75 in
Cable Opening (Min)	0.625 in
Color	Olive Drab
Diameter - Outside	1.55 in
Features	Clamp Screws
For Use With/Related Products	IV, MIL-DTL-38999 Series III
Ingress Protection	Environment Resistant
Material	Aluminum Alloy
Plating	Cadmium
Shell Size - Insert	21, G
Shielding	Shielded
Type	Cable Clamp, Backshell

M85049/18 Series

...

Part	Features	Color	Type	Plating	Diameter - Outside	Cable Exit Angle	Shielding	Ingress Protection	Material	Cable Opening (Max)	Cable Opening (Min)	Shell Size - Insert	For Use With/Related Products
McGill Microwave Systems M85049/1817Z02	Clamp Screws	Black	Backshell Cable Clamp	Zinc Cobalt	1.25 in	180 °	Shielded	Environment Resistant	Aluminum Alloy	0.25 in	0.13 in	17 E
McGill Microwave Systems M85049/1825Z08	Clamp Screws	Black	Backshell Cable Clamp	Zinc Cobalt	1.85 in	180 °	Shielded	Environment Resistant	Aluminum Alloy	1 in	0.88 in	25 J	IV MIL-DTL-38999 Series III
McGill Microwave Systems M85049/1819Z03A	Clamp Screws	Black	Backshell Cable Clamp	Zinc Cobalt	1.4 in	180 °	Shielded	Environment Resistant	Aluminum Alloy	0.38 in	0.25 in	19 F	IV MIL-DTL-38999 Series III
McGill Microwave Systems M85049/1821Z04A	Clamp Screws	Black	Backshell Cable Clamp	Zinc Cobalt	1.55 in	180 °	Shielded	Environment Resistant	Aluminum Alloy	0.5 in	0.38 in	21 G
McGill Microwave Systems M85049/1821Z07C	Clamp Screws	Black	Backshell Cable Clamp	Zinc Cobalt	1.55 in	180 °	Shielded	Environment Resistant	Aluminum Alloy	0.88 in	0.75 in	21 G	IV MIL-DTL-38999 Series III
McGill Microwave Systems M85049/1825Z09B	Clamp Screws	Black	Backshell Cable Clamp	Zinc Cobalt	1.85 in	180 °	Shielded	Environment Resistant	Aluminum Alloy	1.13 in	1 in	25 J
McGill Microwave Systems M85049/1821Z05C	Clamp Screws	Black	Backshell Cable Clamp	Zinc Cobalt	1.55 in	180 °	Shielded	Environment Resistant	Aluminum Alloy	0.63 in	0.5 in	21 G
McGill Microwave Systems M85049/1817Z04A	Clamp Screws	Black	Backshell Cable Clamp	Zinc Cobalt	1.25 in	180 °	Shielded	Environment Resistant	Aluminum Alloy	0.5 in	0.38 in	17 E	IV MIL-DTL-38999 Series III
McGill Microwave Systems M85049/1821Z03	Clamp Screws	Black	Backshell Cable Clamp	Zinc Cobalt	1.55 in	180 °	Shielded	Environment Resistant	Aluminum Alloy	0.38 in	0.25 in	21 G
McGill Microwave Systems M85049/1821Z05A	Clamp Screws	Black	Backshell Cable Clamp	Zinc Cobalt	1.55 in	180 °	Shielded	Environment Resistant	Aluminum Alloy	0.63 in	0.5 in	21 G
