ANT-GPS-SH-SMA

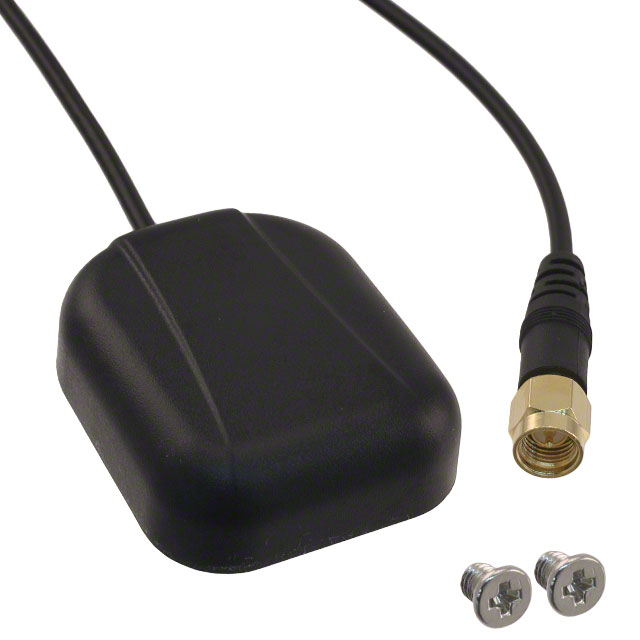

RF ANTENNA GPS Module SMA Male Magnetic, Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-GPS-SH-SMA |
|---|---|
| Antenna Type | Module |
| Applications | GPS |
| Features | LNA |
| Frequency (Center/Band) | 1.575 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Max) | 1.58 GHz |
| Frequency Range (Min) | 1.57 GHz |
| Gain | 5 dB |
| Height (Max) | 0.492 in |
| Mounting Type | Chassis Mount, Magnetic |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| Termination Type | SMA Male |
| VSWR | 1.5 |
