Description
General part information
2CMA102031R1000

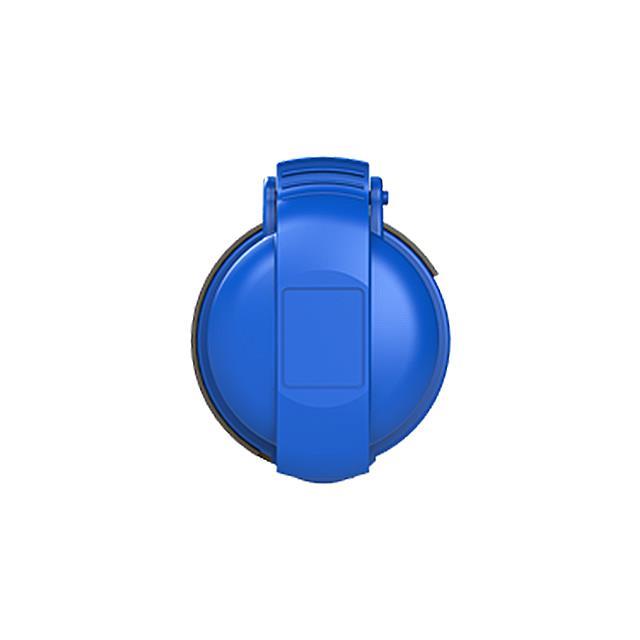

Power Connector Receptacle, Female Sockets Pin and Sleeve (2P3W) Free Hanging (In-Line)
Technical Specifications
Parameters and characteristics for this part
| Specification | 2CMA102031R1000 |
|---|---|
| Approval Agency | IEC |
| Connector Style | Pin and Sleeve (2P3W) |
| Connector Type | Receptacle, Female Sockets |
| Current Rating | 32 A |
| Features | Cover |
| Ingress Protection | IP44 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Termination | Screw |
| Voltage Rating (Option 1) | 200 VAC |
| Voltage Rating (Option 2) | 250 VAC |
