PDUMNV20HV2
ObsoleteEaton Tripp Lite

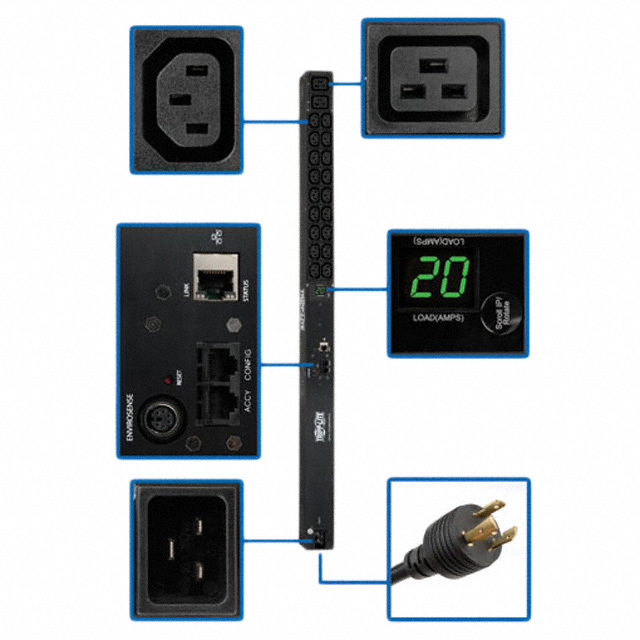

PDU MONITORED 200V-240V 20A C13
PDUMNV20HV2
ObsoleteEaton Tripp Lite
PDU MONITORED 200V-240V 20A C13
Description
General part information
PDUMNV20HV2
PDU MONITORED 200V-240V 20A C13
Technical Specifications
Parameters and characteristics for this part
| Specification | PDUMNV20HV2 |
|---|---|
| AC Outlets (Count) | 20 count |
| Approval Agency | UL, NOM, CE |
| Connector - AC Input | NEMA L6-20P |
| Connector - AC Output | C19, IEC 320-C13 |
| Connector - AC Output Quantity (C19) | 2 pcs |
| Connector - AC Output Quantity (IEC 320-C13) | 18 pcs |
| Cord Length | 10 ft |
| Current - Max | 20 A |
| Features | Load Meter |
| Housing Material | Metal |
| Mounting Type | Rack, Vertical |
| Region Utilized | North America |
| Type | PDU (Power Distribution Unit) |
| Voltage - Input (Maximum) | 240 V |
| Voltage - Input (Minimum) | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
