1926736-5
ActiveTE Connectivity AMP Connectors
CONN HEADER PL 10POWER/25SIGNAL POS SOLDER RA THRU-HOLE 35 TERMINAL 1 PORT
1926736-5
ActiveTE Connectivity AMP Connectors
CONN HEADER PL 10POWER/25SIGNAL POS SOLDER RA THRU-HOLE 35 TERMINAL 1 PORT
Description
General part information
1926736-5

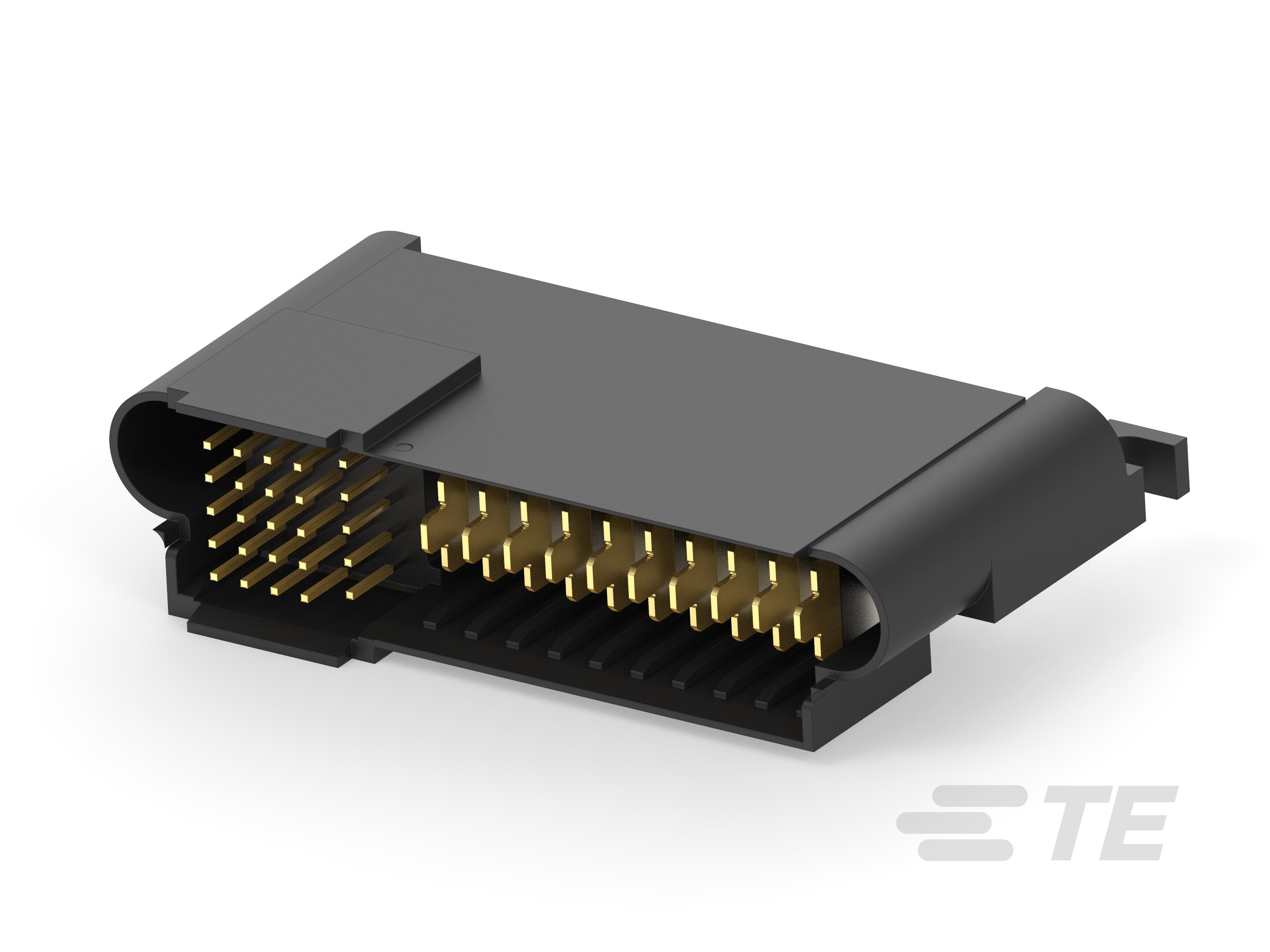

PCB Mount Plug, Right Angle, Board-to-Board, 35 Position, 2 mm / 2.75 mm [.079 in / .108 in] Centerline, Fully Shrouded, Gold (Au)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1926736-5 |
|---|---|
| Color | Black |
| Connector Style | High Speed |
| Connector Type | Header, Male Pins |
| Connector Usage | Backplane |
| Contact Finish | Tin |
| Contact Finish Thickness | 20 µin |
| Mounting Type | Through Hole |
| Number of Columns | 8 |
| Number of Positions | 120 |
| Number of Positions Loaded | All |
| Number of Rows | 15 |
| Pitch | 0.075 in |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
