31224114
ActiveMETZ CONNECT USA Inc.

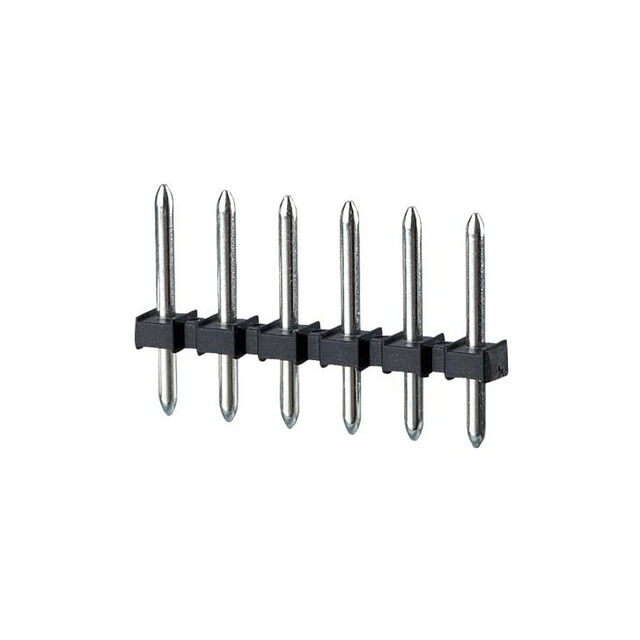

PIN HEADER, VERTICAL, THR, PCB,
31224114
ActiveMETZ CONNECT USA Inc.
PIN HEADER, VERTICAL, THR, PCB,
Description
General part information
31224114
14 Position Terminal Block Header, Male Pins, Unshrouded 0.138" (3.50mm) Vertical Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 31224114 |
|---|---|
| Color | Black |
| Contact Material | Copper Zinc |
| Contact Mating Finish | Silver |
| Contact Tail Length | 0.142 in |
| Current - UL | 15 A |
| Header Orientation | Vertical |
| Housing Material | PA46, Polyamide, Nylon 4/6 |
| Insulation Height | 0.073 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 14 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.138 in |
| Positions Per Level | 14 |
| Termination Style | Solder |
| Type | Male Pins, Unshrouded, Header |
| Voltage - UL | 300 V |
