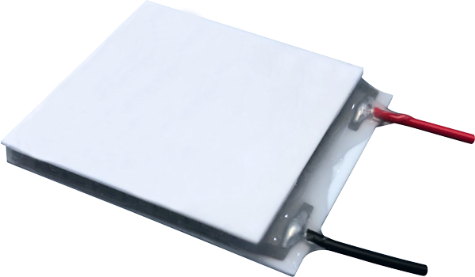

Specification	387004945

Current - Max	2.3 A
Delta Tmax	83.2 °C
Features	Silicone RTV, Lead Wires, Sealed
Height	3.4 mm
Maximum Power Dissipation (Qmax)	22.6 W
Number of Stages	1
Operating Temperature	150 °C
Resistance	6.71 Ohms
Size / Dimension Length	34 mm
Size / Dimension Shape	Rectangular
Size / Dimension Width	30 mm
Type	TEC (Thermoelectric Cooler)
Voltage - Max	16.6 V

HiTemp ETX Series

Thermoelectric Peltier Modules HiTemp ETX Series, Thermoelectric Cooler, RTV perimeter seal

Part	Type	Delta Tmax	Number of Stages	Features	Size / Dimension Shape	Size / Dimension Length	Size / Dimension Width	Current - Max	Voltage - Max	Operating Temperature	Resistance	Maximum Power Dissipation (Qmax)	Height
Tark Thermal Solutions 387004934	TEC (Thermoelectric Cooler)	83.2 °C	1	Lead Wires Sealed Silicone RTV	Rectangular	26.9 mm	24.6 mm	7.9 A	16.6 V	150 °C	1.95 Ohms	77.8 W	1.96 mm
Tark Thermal Solutions 387004948	TEC (Thermoelectric Cooler)	83.2 °C	1	Lead Wires Sealed Silicone RTV	Square	62 mm	62 mm	25 A	16.6 V	150 °C	620 mOhms	245.1 W	4.1 mm
Tark Thermal Solutions 387004959	TEC (Thermoelectric Cooler)	83.2 °C	1	Lapped Lead Wires	Rectangular	25 mm	12.5 mm	2.6 A	8.2 V	150 °C	2.94 Ohms	12.7 W	3.1 mm
Tark Thermal Solutions 387005318	TEC (Thermoelectric Cooler)	83.2 °C	1	Lapped Lead Wires	Square	25 mm	25 mm	2.1 A	16.6 V	150 °C	7.35 Ohms	20.6 W	3.4 mm
Tark Thermal Solutions 387004936	TEC (Thermoelectric Cooler)	83.2 °C	1	Lead Wires Sealed Silicone RTV	Square	30 mm	30 mm	4 A	16.6 V	150 °C	3.91 Ohms	38.8 W	3.2 mm
Tark Thermal Solutions 387004931	TEC (Thermoelectric Cooler)	83.2 °C	1	Lead Wires Sealed Silicone RTV	Square	30 mm	30 mm	11 A	16.6 V	150 °C	1.4 Ohms	108.2 W	2.41 mm
Tark Thermal Solutions 387004958	TEC (Thermoelectric Cooler)	83.2 °C	1	Lead Wires Sealed Silicone RTV	Square	30 mm	30 mm	14.1 A	4.1 V	150 °C	270 mOhms	33.8 W	2.41 mm
Tark Thermal Solutions 387004930	TEC (Thermoelectric Cooler)	83.2 °C	1	Lapped Lead Wires	Square	62 mm	62 mm	14.1 A	16.6 V	150 °C	1.09 Ohms	138.5 W	4.6 mm
Tark Thermal Solutions 387004915	TEC (Thermoelectric Cooler)	83.2 °C	1	Lead Wires Sealed Silicone RTV	Square	40 mm	40 mm	3.9 A	16.6 V	150 °C	4.01 Ohms	37.8 W	4.8 mm
Tark Thermal Solutions 387004937	TEC (Thermoelectric Cooler)	83.2 °C	1	Lead Wires Sealed Silicone RTV	Square	40 mm	40 mm	5.9 A	26 V	150 °C	4.1 Ohms	90.8 W	3.91 mm
