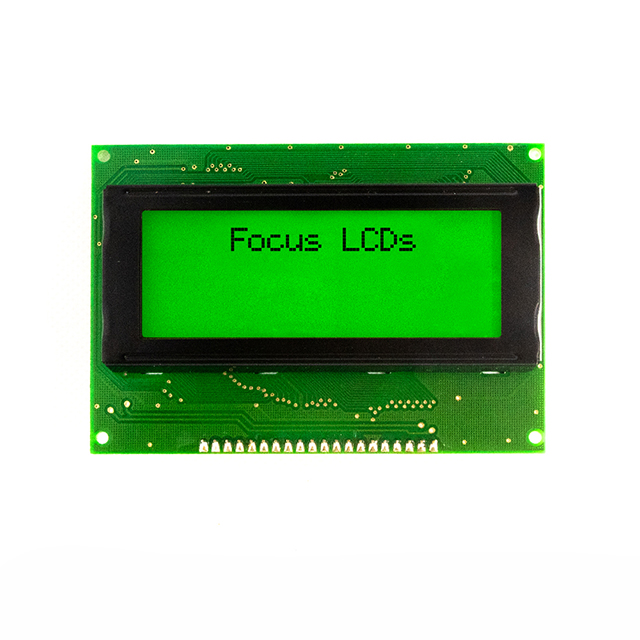

C204HLBSYLY6WM
Character Display Module Transmissive 5 x 7 Dots STN - Super-Twisted Nematic LED - Yellow Parallel 96.00mm x 66.00mm x 13.80mm
Technical Specifications
Parameters and characteristics for this part
| Specification | C204HLBSYLY6WM |
|---|---|
| Background Color | Yellow, Green |
| Backlight Color | Yellow |
| Backlight Type | LED |
| Character Height | 5.22 mm |
| Character Height (Dots) | 7 Dots |
| Character Width | 2.9 mm |
| Character Width (Dots) | 5 Dots |
| Controller Type | ST7066-0A |
| Display Columns | 20 |
| Display Mode | Transmissive |
| Display Rows | 4 |
| Display Type | STN - Super-Twisted Nematic |
| Dot Size Height | 0.6 mm |
| Dot Size Width | 0.53 mm |
| Interface | Parallel |
| Number of Characters | 80 characters |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Outline Height | 13.8 mm |
| Outline Length | 96 mm |
| Outline Width | 66 mm |
| Text Color | Black |
| Viewing Area Length | 73 mm |
| Viewing Area Width | 23.6 mm |
| Voltage - Supply | 5 VDC |
