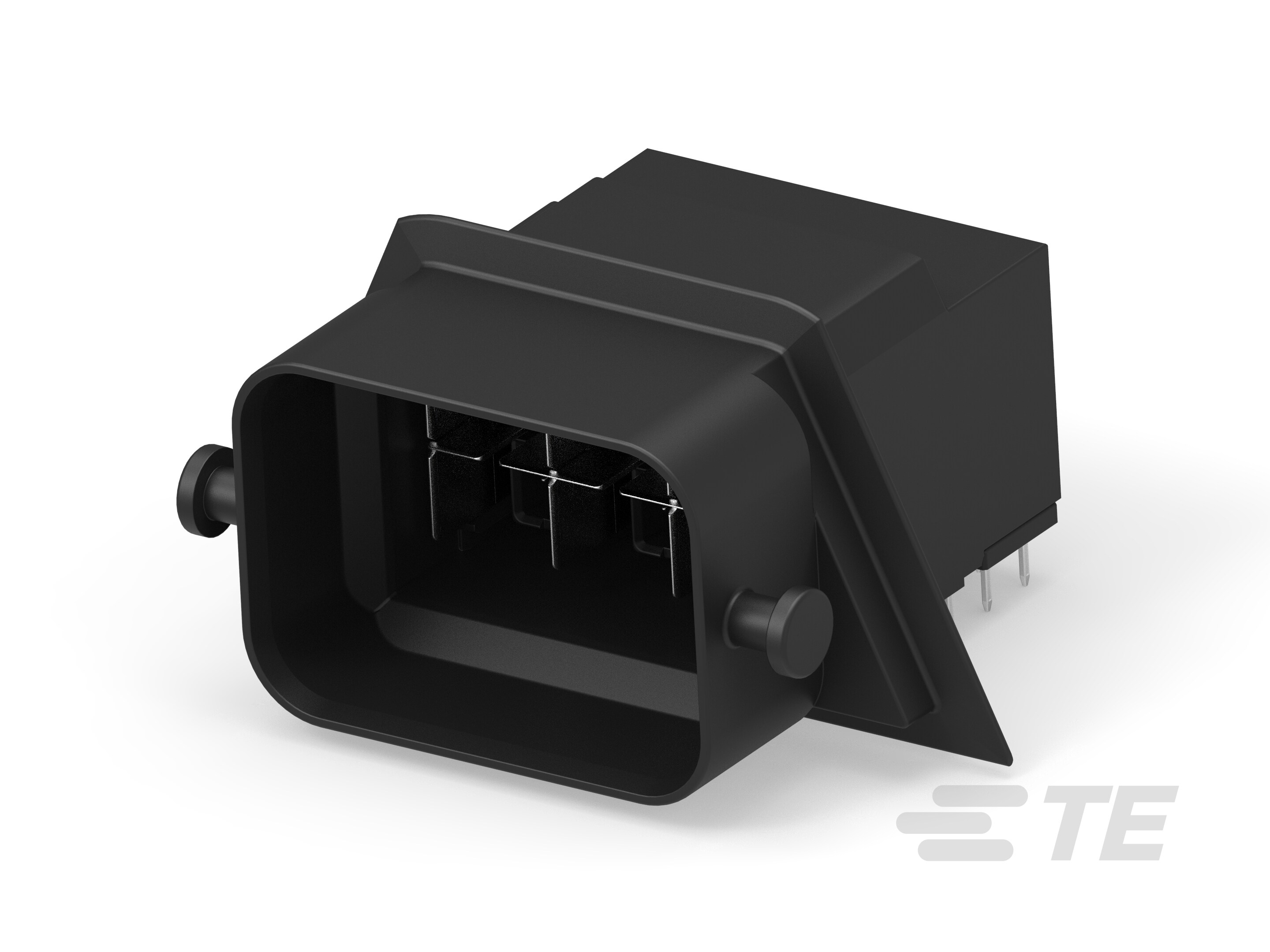

Specification	2351577-1

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Post	0.108 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Height	0.983 in
Insulation Material	Glass Filled, Nylon 10T, Polyamide (PA10T)
Material Flammability Rating	UL94 HB
Mounting Type	Through Hole, Right Angle
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.071 in
Row Spacing - Mating	0.307 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
