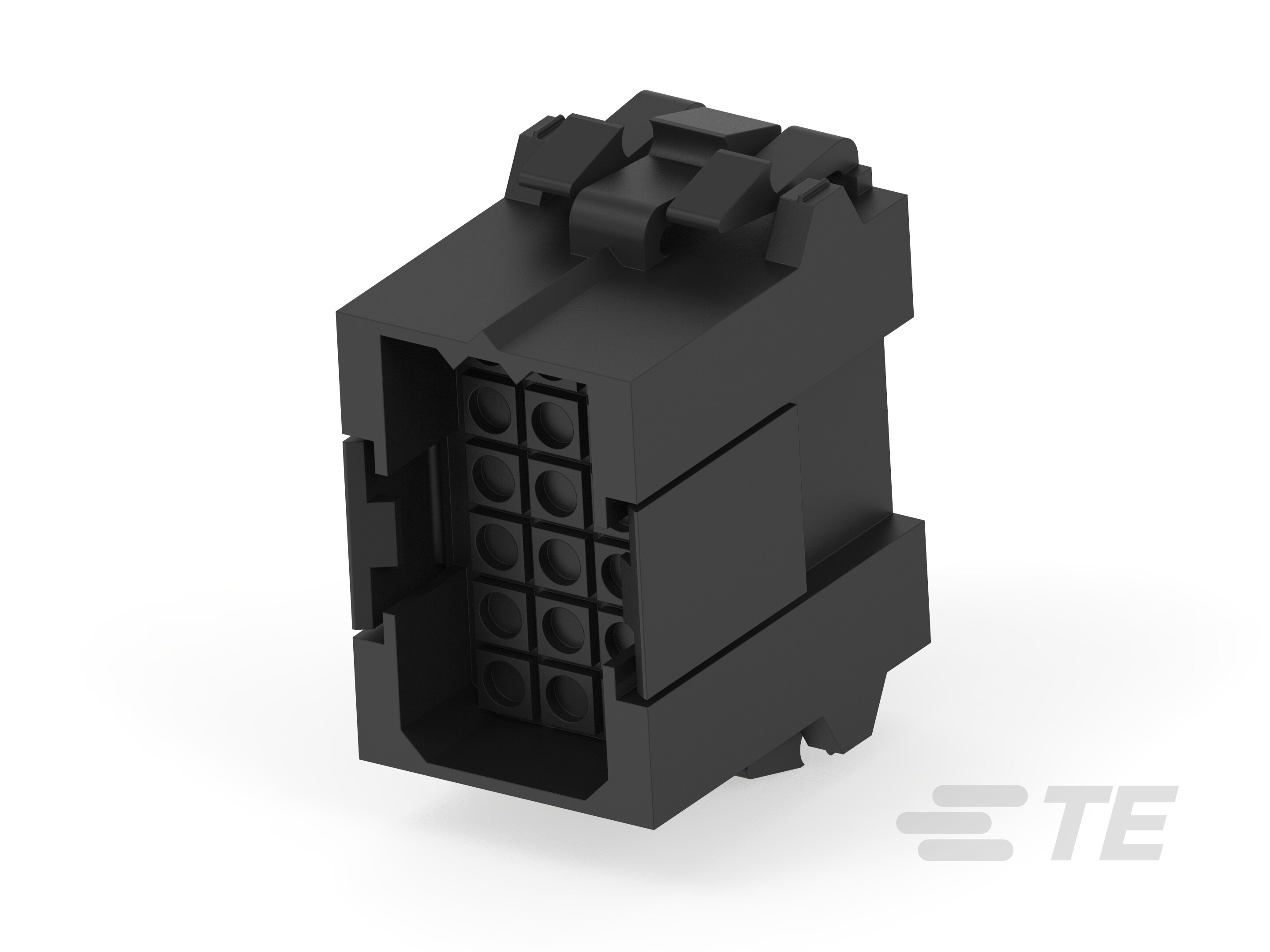

Specification	207443-1

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp and Solder, Crimp, Solder
Contact Type	Male Pin
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	18
Number of Rows	3
Operating Temperature (Max)	130 °C
Operating Temperature (Min)	-55 °C
Pitch	0.197 in
Row Spacing	0.197 in

Metrimate Series

Part	Pitch - Mating	Style	Contact Shape	Insulation Material	Voltage Rating	Row Spacing - Mating	Fastening Type	Number of Positions Loaded	Contact Material	Insulation Color	Contact Finish Thickness - Mating	Connector Type	Contact Finish - Mating	Number of Rows	Shrouding	Insulation Height	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating	Contact Length - Post	Contact Finish - Post	Mounting Type	Features	Current Rating	Contact Type	Number of Positions	Termination	Applications	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 207119-3	0.196 in	Board Board or Cable	Circular	Nylon Polyamide (PA)	600 V	0.196 in	Latch Lock	All	Brass	Black Red	30 µin	Header	Gold	2	Shrouded - 4 Wall	0.464 in	-55 °C	130 °C	UL94 V-0	0.181 in	Tin	Through Hole	Mounting Flange	7.5 A	Male Pin	4	Solder	Automotive General Purpose Industrial	150 µin
TE Connectivity AMP Connectors 207119-2	0.196 in	Board Board or Cable	Circular	Nylon Polyamide (PA)	600 V	0.196 in	Latch Lock	All	Brass	Black Red	150 µin	Header	Tin	2	Shrouded - 4 Wall	0.464 in	-55 °C	130 °C	UL94 V-0	0.181 in	Tin	Through Hole		7.5 A	Male Pin	4	Solder	Automotive General Purpose Industrial	150 µin
TE Connectivity AMP Connectors 207119-4	0.196 in	Board Board or Cable	Circular	Nylon Polyamide (PA)	600 V	0.196 in	Latch Lock	All	Brass	Black Red	30 µin	Header	Gold	2	Shrouded - 4 Wall	0.464 in	-55 °C	130 °C	UL94 V-0	0.181 in	Tin	Through Hole		7.5 A	Male Pin	4	Solder	Automotive General Purpose Industrial	150 µin
TE Connectivity AMP Connectors 1-207119-1	0.196 in	Board Board or Cable	Circular	Nylon Polyamide (PA)	600 V	0.196 in	Latch Lock	All	Brass	Black Red	30 µin	Header	Gold	2	Shrouded - 4 Wall	0.464 in	-55 °C	130 °C	UL94 V-0	0.181 in	Tin	Through Hole		7.5 A	Male Pin	4	Solder	Automotive General Purpose Industrial	150 µin
