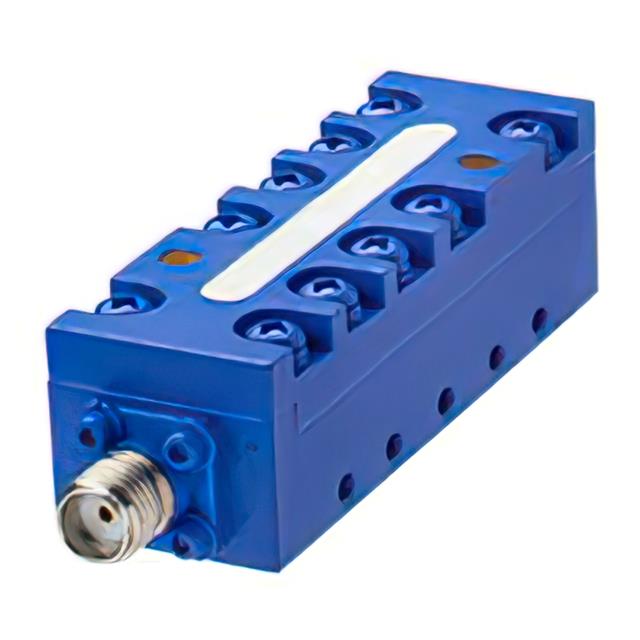

ZVBP-16R3G-S+
ActiveMini-Circuits
RF FILTER BAND PASS 16.3GHZ MOD
ZVBP-16R3G-S+
ActiveMini-Circuits
RF FILTER BAND PASS 16.3GHZ MOD
Description
General part information
ZVBP-16R3G-S+
16.3GHz Center Frequency Band Pass RF Filter (Radio Frequency) 800MHz Bandwidth 0.9dB Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | ZVBP-16R3G-S+ |
|---|---|
| Bandwidth | 800 MHz |
| Filter Type | Band Pass |
| Frequency (Center) | 16.3 GHz |
| Height (Max) | 0.691 in |
| Insertion Loss | 0.9 dB |
| Mounting Type | Chassis Mount |
| Package / Case | Module, SMA Connectors |
| Size / Dimension Length | 1.969 in |
| Size / Dimension Width | 0.661 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
