6001285
ActiveSemtech Corporation

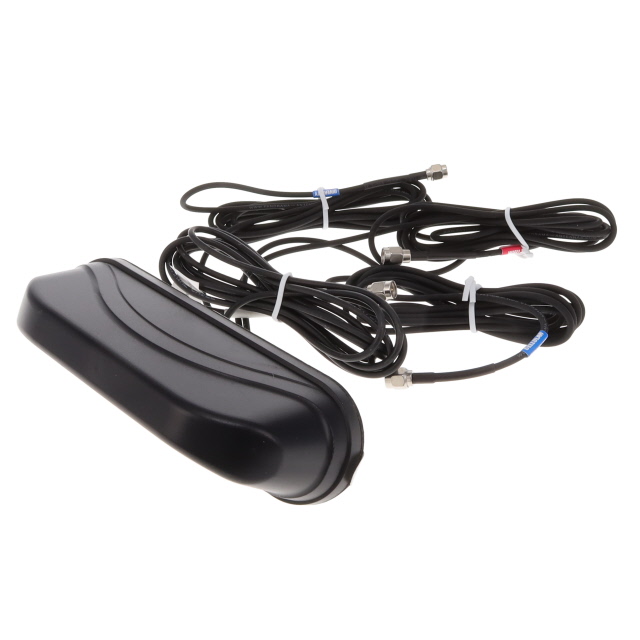

ANTENNAS 4IN1 PANEL ANTENNA - 2XLTE, GNSS, 1XWI-FI, 2.4/5GHZ, BOLT MOUNT, 2M, BLACK
6001285
ActiveSemtech Corporation
ANTENNAS 4IN1 PANEL ANTENNA - 2XLTE, GNSS, 1XWI-FI, 2.4/5GHZ, BOLT MOUNT, 2M, BLACK
Description
General part information
6001285
RF ANTENNA GNSS, LTE, Wi-Fi Panel Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 6001285 |
|---|---|
| Antenna Type | Panel |
| Applications | Wi-Fi, LTE, GNSS |
| Features | Cable, 2m |
| Frequency (Center/Band) | 2.4GHz, 5GHz, 2.249GHz |
| Frequency (Center/Band) - 1 | 2.249 GHz |
| Frequency (Center/Band) - 2 | 2.4 GHz |
| Frequency (Center/Band) - 3 | 5 GHz |
| Frequency Group | SHF, UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 3800 MHz |
| Frequency Range (Min) | 698 MHz |
| Mounting Type | Panel Mount |
| Number of Bands | 3 |
| RF Family/Standard | Cellular, Navigation, WiFi |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
