12 WAY IN-LINE REC PLUG ASSY-2297907-1

2297907-1

Active
TE Connectivity AMP Connectors

12 WAY IN-LINE REC PLUG ASSY

Find alt
12 WAY IN-LINE REC PLUG ASSY-2297907-1

2297907-1

Active
TE Connectivity AMP Connectors

12 WAY IN-LINE REC PLUG ASSY

Find alt

Description

General part information

2297907-1

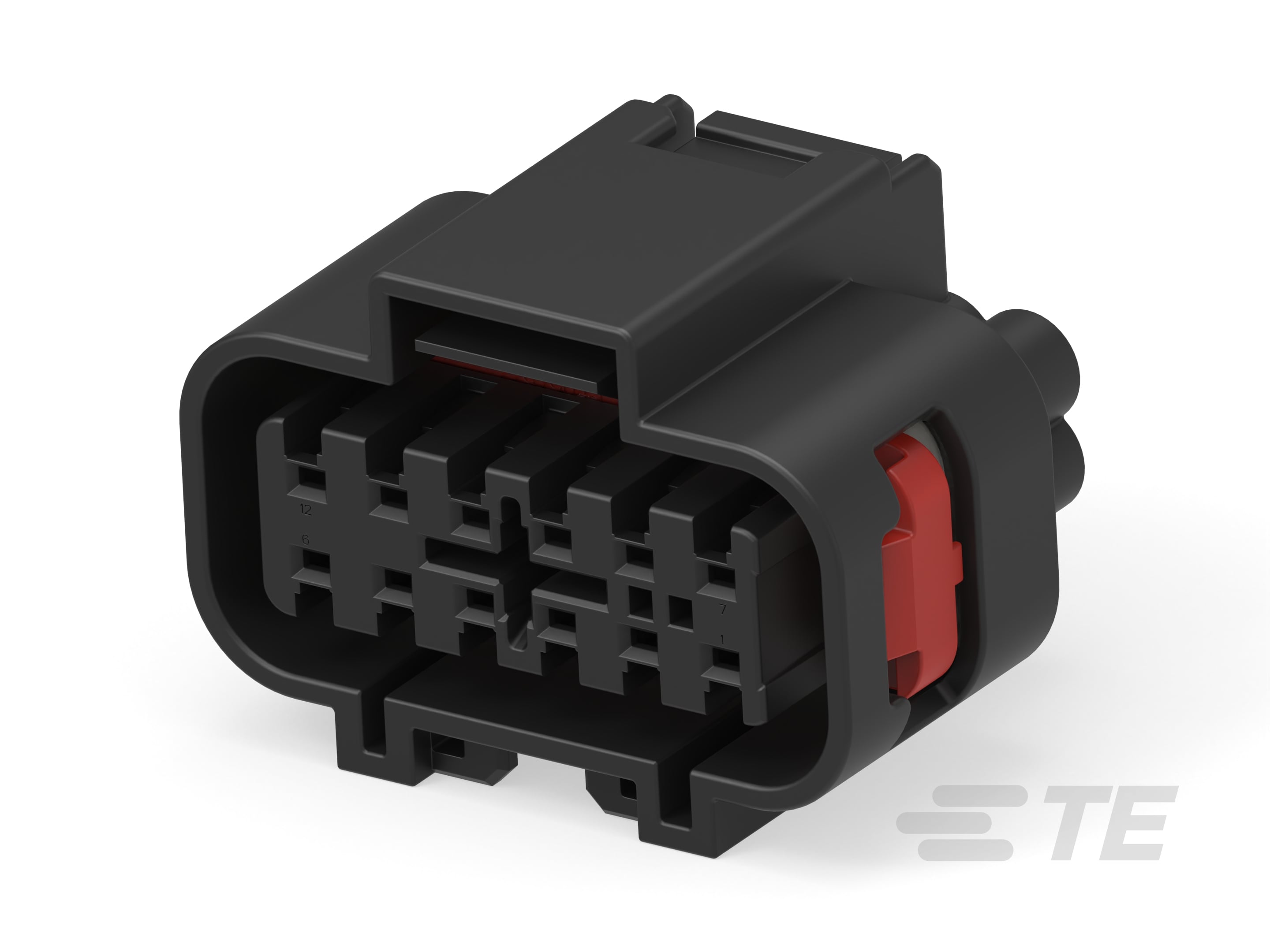

12 Position Housing, Housing for Female Terminals, Wire-to-Wire, 4.5 mm [.17 in] Centerline, Sealable, Black, Wire & Cable, Power

Technical Specifications

Parameters and characteristics for this part

Specification2297907-1
ColorBlack
Connector TypeReceptacle
Contact TerminationCrimp
Contact TypeFemale Socket
Fastening TypeLatch Holder
Insulation MaterialNylon 6/6, Polyamide (PA66), Glass Filled
Mounting TypeFree Hanging (In-Line)
Number of Positions12
Number of Rows2
Operating Temperature (Max)125 °C
Operating Temperature (Min)-40 °C
Pitch0.177 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part
