SMT-1220-TW
ObsoletePUI Audio, Inc.

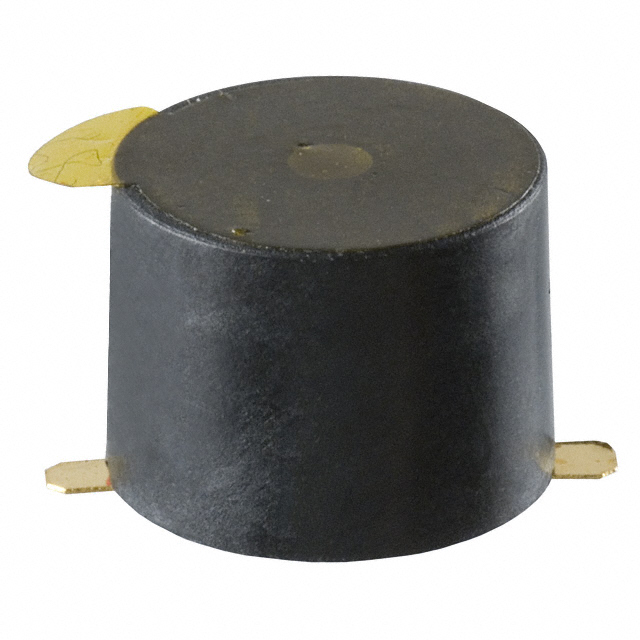

BUZZER MAGNETIC 3V 12MM SMD
SMT-1220-TW
ObsoletePUI Audio, Inc.
BUZZER MAGNETIC 3V 12MM SMD
Description
General part information
SMT-1220-TW
Buzzers Transducer, Externally Driven Electromechanical/Magnetic 3 V 35mA 2kHz 80dB @ 3V, 10cm Surface Mount Solder Pads
Technical Specifications
Parameters and characteristics for this part
| Specification | SMT-1220-TW |
|---|---|
| Current - Supply | 35 mA |
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 2 kHz |
| Height - Seated (Max) | 0.374 in |
| Input Type | Zero-Peak Signal |
| Mounting Type | Surface Mount |
| Operating Mode | Single Tone |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Port Location | Top |
| Size / Dimension Diameter | 0.472 in |
| Sound Pressure Level (SPL) | 80 dB |
| Technology | Electromechanical, Magnetic |
| Termination | Solder Pads |
| Voltage - Rated | 3 VDC |
| Voltage Range (Max) | 5 V |
| Voltage Range (Min) | 2 V |
