AE213E12F98A

Active

Conesys

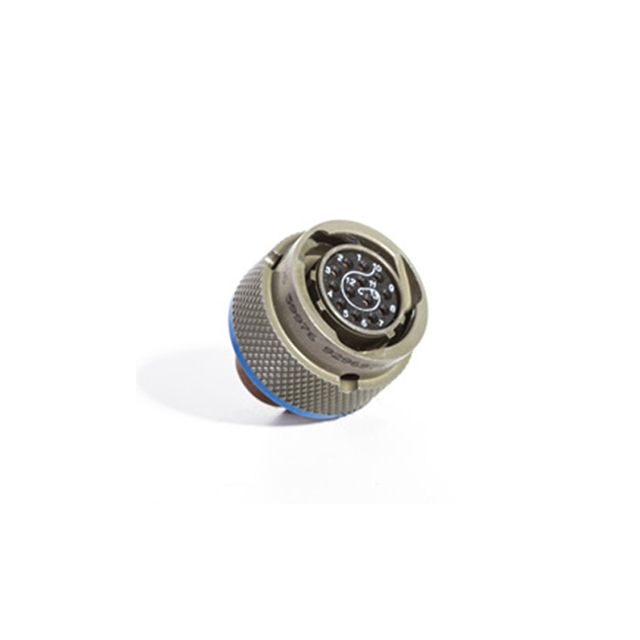

CONN RCPT MALE 10POS CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

AE213E12F98A

Active

Conesys

CONN RCPT MALE 10POS CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 28.06
		10	$ 24.32
		25	$ 21.46
		50	$ 19.20
		100	$ 16.84

Description

General part information

AE213E Series

10 Position Circular Connector Receptacle, Male Pins Crimp

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AE213E12F98A	AE213E Series

Color	Silver	Silver, Olive Drab
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins, Receptacle, Female Sockets, Receptacle Housing
Contact Finish - Mating	-	Gold
Contact Size	-	22D
Contact Size	-	16 - 20
Contact Type	-	Crimp
Current Rating (Amps)	-	5 - 13 A
Fastening Type	Bayonet Lock	Bayonet Lock
Housing Color	-	Silver, Olive Drab
Mounting Feature	Flange	Flange
Note	-	Contacts Not Included
Number of Positions	10	6 - 79
Number of Positions	-	16
Operating Temperature [Max]	200 °C	200 - 347 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Orientation	N	N, A
Primary Material	Metal	Metal
Qualification	-	MIL-DTL-38999 Series II
Shell Finish	Nickel	Nickel, Olive Drab Cadmium, Cadmium
Shell Material	Aluminum	Aluminum
Shell Size - Insert	-	20 - 35
Shell Size - Insert	-	12 - 16
Shell Size - Insert	-	10-5, 12-3
Shell Size - Insert [Max]	98	35 - 98
Shell Size - Insert [Min]	12	8 - 20
Shielding	Shielded	Shielded
Termination	Crimp	Crimp
Type	-	For Male Pins, For Female Sockets

AE213E Series

CONN RCPT MALE 6POS CRIMP

Part	Termination	Shielding	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Shell Finish	Orientation	Mounting Feature	Color	Primary Material	Connector Type	Shell Material	Number of Positions	Shell Size - Insert [Max] [diameter]	Shell Size - Insert [Min] [diameter]	Contact Finish - Mating	Current Rating (Amps)	Type	Housing Color	Qualification	Contact Type	Contact Size	Note	Contact Size	Shell Size - Insert
Conesys AE213E8F35A	Crimp	Shielded	6	-65 ░C	200 °C	Bayonet Lock	8	35	Nickel	N	Flange	Silver	Metal	Male Pins, Receptacle	Aluminum
Conesys AE213E20B16B	Crimp	Shielded		-65 ░C	347 °F	Bayonet Lock			Olive Drab Cadmium	N	Flange	Olive Drab	Metal	Receptacle, Female Sockets	Aluminum	16	20	16
Conesys AE213E12F35A	Crimp	Shielded	22 positions	-65 ░C	200 °C	Bayonet Lock			Nickel	N	Flange	Silver	Metal	Male Pins, Receptacle	Aluminum		35	12
Conesys AE213E10B35BA	Crimp	Shielded	13	-65 ░C	347 °F	Bayonet Lock	10	35	Olive Drab Cadmium	A	Flange	Olive Drab	Metal	Receptacle, Female Sockets	Aluminum
Conesys AE213E10B98SA	Crimp	Shielded	6	-65 ░C	347 °F	Bayonet Lock	10	98	Olive Drab Cadmium	A	Flange	Olive Drab	Metal	Receptacle, Female Sockets	Aluminum				Gold	7.5 A
Conesys AE213E8F35P-LC		Shielded	6	-65 ░C	200 °C	Bayonet Lock	8	35	Nickel	N	Flange			Receptacle Housing	Aluminum						For Male Pins	Silver	MIL-DTL-38999 Series II	Crimp	22D	Contacts Not Included
Conesys AE213E10B5PA-LC		Shielded		-65 ░C	347 °F	Bayonet Lock			Cadmium	A	Flange			Receptacle Housing	Aluminum						For Male Pins	Olive Drab	MIL-DTL-38999 Series II	Crimp		Contacts Not Included	20	10-5
Conesys AE213E12F35P-LC		Shielded	22 positions	-65 ░C	200 °C	Bayonet Lock			Nickel	N	Flange			Receptacle Housing	Aluminum		35	12			For Male Pins	Silver	MIL-DTL-38999 Series II	Crimp	22D	Contacts Not Included
Conesys AE213E10F98S	Crimp	Shielded	6	-65 ░C	200 °C	Bayonet Lock	10	98	Nickel	N	Flange	Silver	Metal	Receptacle, Female Sockets	Aluminum				Gold	7.5 A
Conesys AE213E10F5A	Crimp	Shielded		-65 ░C	200 °C	Bayonet Lock			Nickel	N	Flange	Silver	Metal	Male Pins, Receptacle	Aluminum													10-5
