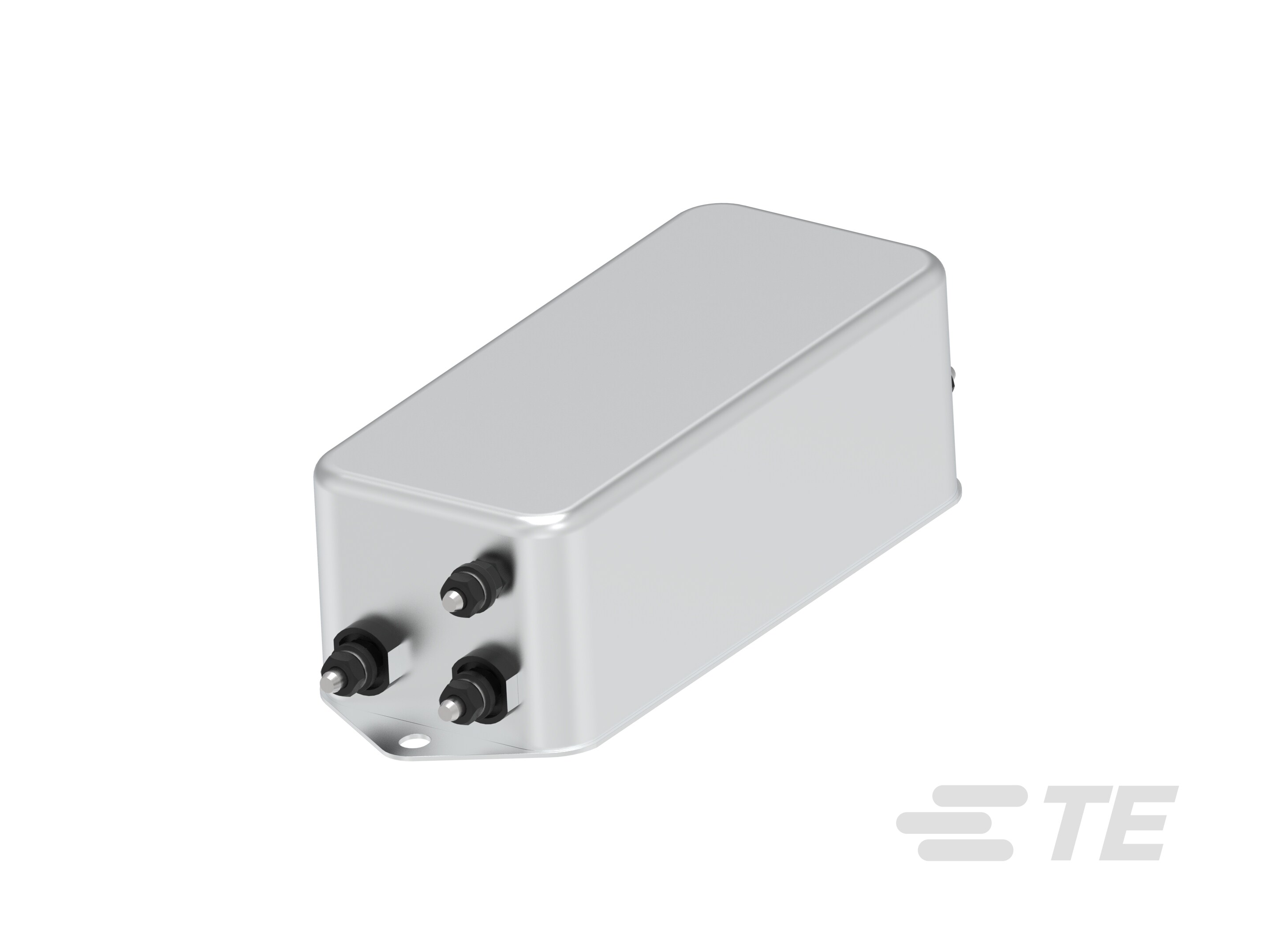

FN2070B-25-08-816064-SF

FN2070A-36-08

Active
TE Connectivity AMP Connectors

LINE FILTER 250VAC/VDC 36A CHASS

Find alt
FN2070B-25-08-816064-SF

FN2070A-36-08

Active
TE Connectivity AMP Connectors

LINE FILTER 250VAC/VDC 36A CHASS

Find alt

Description

General part information

Schaffner FN2070 Series

36 A Single Phase Filter, Threaded Stud Input, Threaded Stud Output, 250 VAC, Schaffner FN2070, Single Phase Filters

Technical Specifications

Parameters and characteristics for this part

SpecificationFN2070A-36-08
ApplicationsSafety
Approval AgencyUR, CE, ENEC, CSA
ConfigurationTwo Stage
Current36 A
Filter TypeSingle Phase
Frequency - Operating (Max)400 Hz
Frequency - Operating (Min)0 Hz
Inductance1.23 mH
Mounting TypeChassis Mount
Operating Temperature (Max)100 °C
Operating Temperature (Min)-25 °C
Termination StyleWire Leads
Voltage - Rated AC250 V
Voltage - Rated DC250 V
