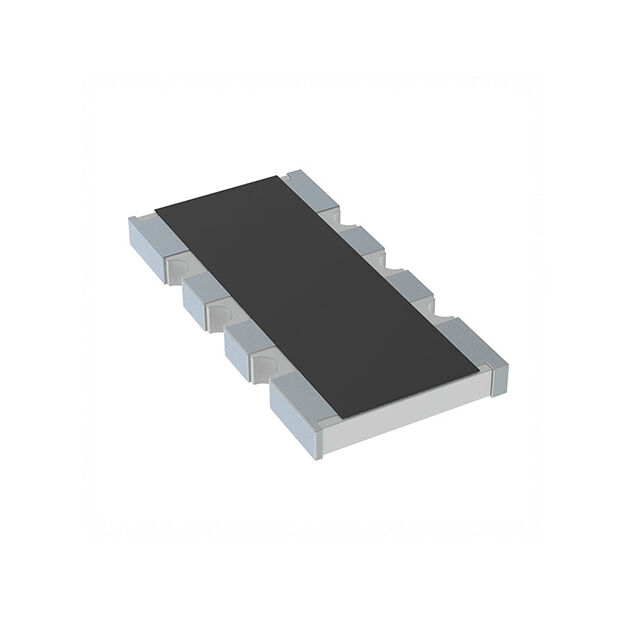

CAY16-3322F4LF

Active

Bourns Inc.

4 ±1% 33.2KΩ 62.5MW ±200PPM/℃ 0603X4 RESISTOR NETWORKS, ARRAYS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CAY16-3322F4LF

Active

Bourns Inc.

4 ±1% 33.2KΩ 62.5MW ±200PPM/℃ 0603X4 RESISTOR NETWORKS, ARRAYS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CAY16-3322F4LF

Circuit Type	Isolated
Height - Seated (Max) [Max] [z]	0.6 mm
Height - Seated (Max) [Max] [z]	0.024 in
Mounting Type	Surface Mount
Number of Pins	8
Number of Resistors	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	1206 (3216 Metric), Convex, Long Side Terminals
Resistance (Ohms)	33.2 kOhms
Size / Dimension [x]	0.126 "
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Supplier Device Package	1206
Temperature Coefficient	200 ppm/°C
Tolerance	1 %

CAY16 Series

...

Part	Tolerance	Number of Pins	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Number of Resistors	Circuit Type	Resistance (Ohms)	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Temperature Coefficient	Qualification	Power Per Element	Grade
Bourns Inc. CAY16-431J4LF	5 %	8	0.063 in	1.6 mm	0.126 "	3.2 mm	1206 (3216 Metric) Convex Long Side Terminals	4	Isolated	430 Ohms	-55 °C	125 °C	1206	0.6 mm	0.024 in	Surface Mount	200 ppm/°C
Bourns Inc. CAY16-200J4LF	5 %	8	0.063 in	1.6 mm	0.126 "	3.2 mm	1206 (3216 Metric) Convex Long Side Terminals	4	Isolated	20 Ohms	-55 °C	125 °C	1206	0.6 mm	0.024 in	Surface Mount	200 ppm/°C
Bourns Inc. CAY16-24R0F4LF	1 %	8	0.063 in	1.6 mm	0.126 "	3.2 mm	1206 (3216 Metric) Convex Long Side Terminals	4	Isolated	24 Ohms	-55 °C	125 °C	1206	0.6 mm	0.024 in	Surface Mount	200 ppm/°C
Bourns Inc. CAY16A-10R0F4LF	1 %	8	0.063 in	1.6 mm	0.126 "	3.2 mm	1206 (3216 Metric) Convex Long Side Terminals	4	Isolated	10 Ohms	-55 °C	125 °C	1206	0.6 mm	0.024 in	Surface Mount	200 ppm/°C	AEC-Q200	63 mW	Automotive
Bourns Inc. CAY16-1202F4LF	1 %	8	0.063 in	1.6 mm	0.126 "	3.2 mm	1206 (3216 Metric) Convex Long Side Terminals	4	Isolated	12 kOhms	-55 °C	125 °C	1206	0.6 mm	0.024 in	Surface Mount	200 ppm/°C
Bourns Inc. CAY16A-1000F4LF	1 %	8	0.063 in	1.6 mm	0.126 "	3.2 mm	1206 (3216 Metric) Convex Long Side Terminals	4	Isolated	100 Ohms	-55 °C	125 °C	1206	0.6 mm	0.024 in	Surface Mount	200 ppm/°C	AEC-Q200	63 mW	Automotive
Bourns Inc. CAY16A-152J4LF	5 %	8	0.063 in	1.6 mm	0.126 "	3.2 mm	1206 (3216 Metric) Convex Long Side Terminals	4	Isolated	1.5 kOhms	-55 °C	125 °C	1206	0.6 mm	0.024 in	Surface Mount	200 ppm/°C	AEC-Q200	63 mW	Automotive
Bourns Inc. CAY16-273J4LF	5 %	8	0.063 in	1.6 mm	0.126 "	3.2 mm	1206 (3216 Metric) Convex Long Side Terminals	4	Isolated	27000 Ohms	-55 °C	125 °C	1206	0.6 mm	0.024 in	Surface Mount	200 ppm/°C
Bourns Inc. CAY16-3322F4LF	1 %	8	0.063 in	1.6 mm	0.126 "	3.2 mm	1206 (3216 Metric) Convex Long Side Terminals	4	Isolated	33.2 kOhms	-55 °C	125 °C	1206	0.6 mm	0.024 in	Surface Mount	200 ppm/°C
Bourns Inc. CAY16-40R2F4LF	1 %	8	0.063 in	1.6 mm	0.126 "	3.2 mm	1206 (3216 Metric) Convex Long Side Terminals	4	Isolated	40.2 Ohms	-55 °C	125 °C	1206	0.6 mm	0.024 in	Surface Mount	200 ppm/°C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 0.02
LCSC	Piece	1	$ 0.02
		200	$ 0.01
		500	$ 0.01
		1000	$ 0.01

Description

General part information

CAY16 Series

33.2k Ohm ±1% 62.5mW Power Per Element Isolated 4 Resistor Network/Array ±200ppm/°C 1206 (3216 Metric), Convex, Long Side Terminals
