Specification	342066

Color	Black
Contact Finish	Tin
Contact Material	Copper
Features	Heavy Duty
Insulation	Insulated
Length - Overall	1.614 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	0.5 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.042 in
Width - Outer Edges	0.748 in
Wire Gauge (AWG) (Max)	16 AWG
Wire Gauge (AWG) (Min)	14 AWG

PIDG Series

...

Part	Thickness	Termination	Mounting Type	Length - Overall	Contact Material	Features	Width - Outer Edges	Color	Stud/Tab Size	Insulation	Terminal Type	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Contact Finish	Insulation Diameter (Min)	Insulation Diameter (Max)	Material - Insulation	Length - Pin	Insulation Diameter	Wire Gauge	Wire Gauge (Cross-Sectional Area) (Max)	Wire Gauge (Cross-Sectional Area) (Min)	Pin Diameter Shape	Pin Diameter	Terminal Style	Tab Thickness	Stud/Tab Size

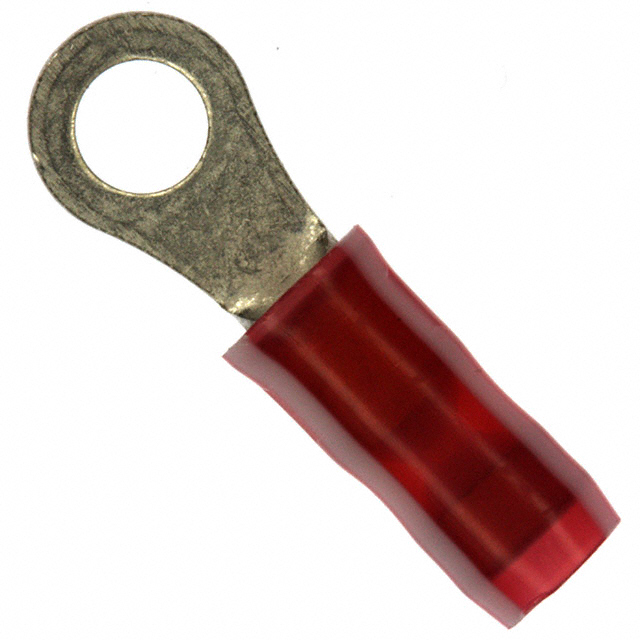

TE Connectivity AMP Connectors 51863-1	0.031 in	Crimp	Free Hanging (In-Line)	0.782 in	Copper	Serrated Termination	0.25 in	Red	6 Stud	Insulated	Circular	16 AWG	22 AWG	Tin	0.08 in	0.125 in	Nylon PA Polyamide
TE Connectivity AMP Connectors 53429-1	0.039 in	Crimp	Free Hanging (In-Line)	1.414 in	Copper	Radiation Resistant	0.715 in	Natural Yellow Stripe	0.5 Stud	Insulated	Oval	10 AWG	12 AWG	Tin-Lead
TE Connectivity AMP Connectors 165142		Crimp		0.795 in	Copper	Serrated Termination		Red		Insulated		16 AWG	22 AWG	Tin			Nylon PA Polyamide	0.264 in	0.142 in	16-22 AWG	1.6 mm²	0.2 mm²	Circular	0.071 in
TE Connectivity AMP Connectors 130472		Crimp	Free Hanging (In-Line)	0.813 in			0.25 in	Blue	4 Stud	Insulated	Rectangular Tongue	14 AWG	16 AWG												Single Stud Hole	0.031 in

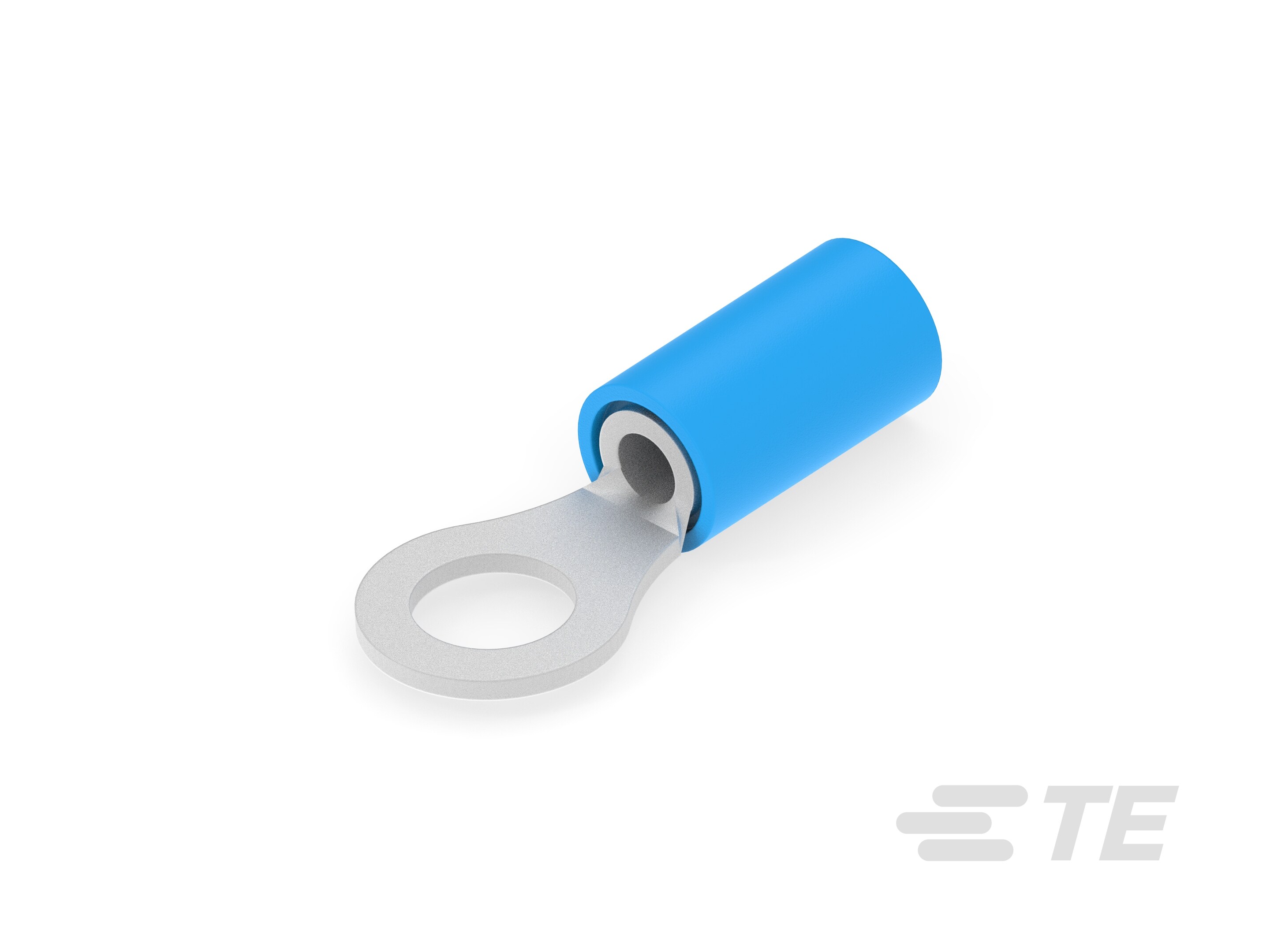

TE Connectivity AMP Connectors 130094	0.031 in	Crimp	Free Hanging (In-Line)	0.864 in	Copper	Serrated Termination	0.343 in	Blue		Insulated	Circular	14 AWG	16 AWG	Tin	0.115 in	0.17 in	Nylon PA Polyamide										M5 M5 Stud
TE Connectivity AMP Connectors 9-51863-1	0.031 in	Crimp	Free Hanging (In-Line)	0.844 in	Copper	Insulation Restriction	0.25 in	Red White Stripe	6 Stud	Insulated	Circular			Tin	0.056 in	0.11 in	Nylon PA Polyamide			18 AWG
TE Connectivity AMP Connectors 31894	0.031 in	Crimp	Free Hanging (In-Line)	1.078 in	Copper	Serrated Termination	0.469 in	Red	0.25 Stud	Insulated	Circular	16 AWG	22 AWG	Tin
TE Connectivity AMP Connectors 171506-1	0.031 in	Crimp	Free Hanging (In-Line)	0.823 in	Copper	Serrated Termination	0.311 in	Red	8 Stud	Insulated	Circular	18 AWG	22 AWG	Tin

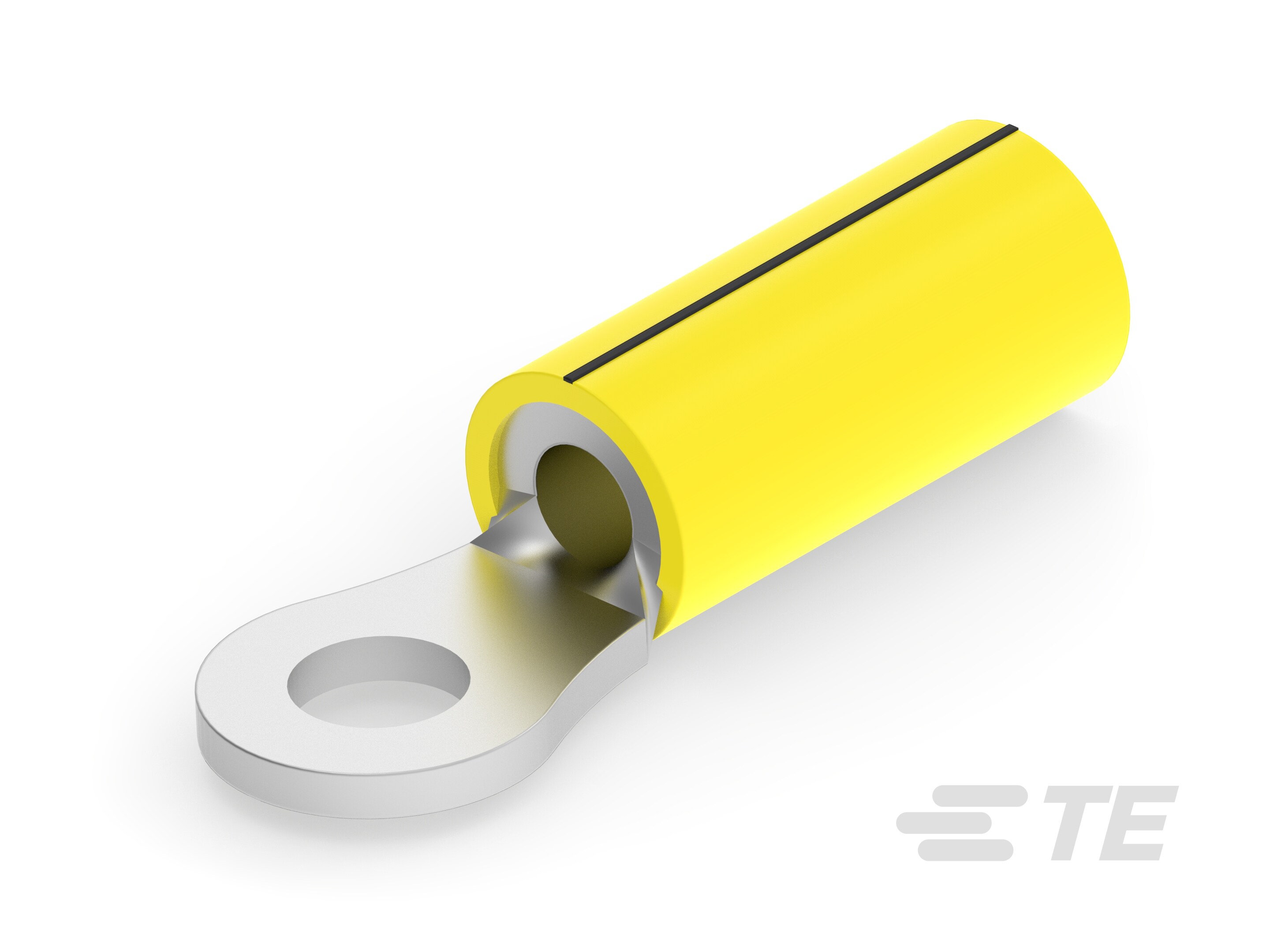

TE Connectivity AMP Connectors 320627	0.048 in	Crimp	Free Hanging (In-Line)	1.046 in	Copper	Heavy Duty Serrated Termination	0.343 in	Black Stripe Yellow	8 Stud	Insulated	Circular	14 AWG	16 AWG	Tin	0.15 in	0.23 in	Nylon PA Polyamide
TE Connectivity AMP Connectors 8-328975-1	0.031 in	Crimp	Free Hanging (In-Line)	1.293 in	Copper	Serrated Termination	0.713 in	Red	0.5 Stud	Insulated	Circular	16 AWG	22 AWG	Tin
