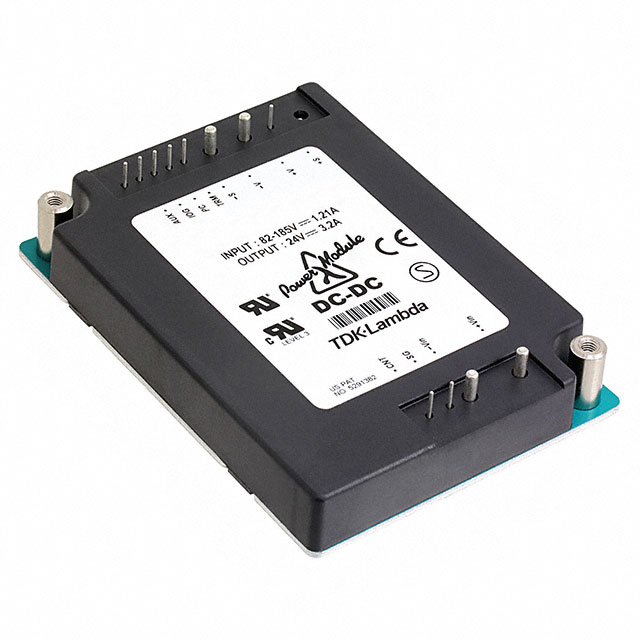

PH75F110-24
ObsoleteTDK Corporation
DC DC CONVERTER 24V 75W
PH75F110-24
ObsoleteTDK Corporation
DC DC CONVERTER 24V 75W
Description
General part information
PH75F110-24
Isolated Module DC DC Converter 1 Output 24V 3.2A 82V - 185V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | PH75F110-24 |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Enable, Active Low |
| Current - Output (Max) | 3.2 A |
| Features | OCP, OVP, Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | Module |
| Power (Watts) | 75 W |
| Size / Dimension Height | 0.5 in |
| Size / Dimension Length | 3.39 in |
| Size / Dimension Width | 2.44 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 185 V |
| Voltage - Input (Min) | 82 V |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 24 V |
