PEWCP1086S-40
ActivePasternack

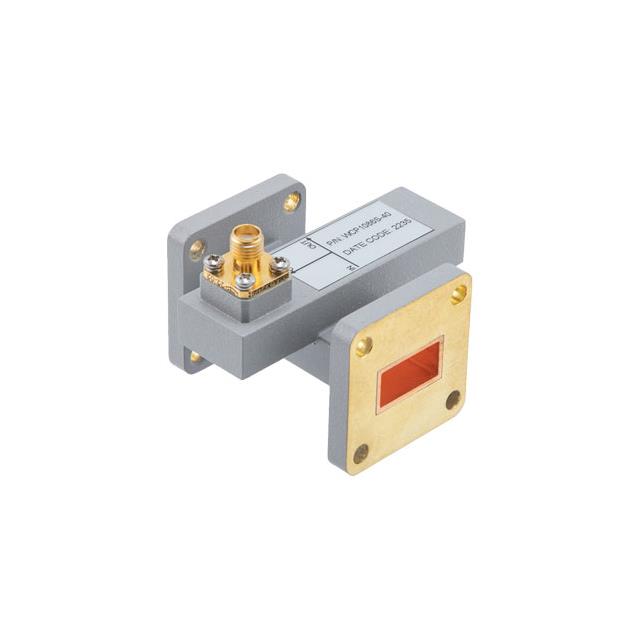

WR-62 WAVEGUIDE 40 DB CROSSGUIDE
PEWCP1086S-40
ActivePasternack
WR-62 WAVEGUIDE 40 DB CROSSGUIDE
Description
General part information
PEWCP1086S-40
RF Directional Coupler General Purpose 11.9GHz ~ 18GHz 40dB 400W Module
Technical Specifications
Parameters and characteristics for this part
| Specification | PEWCP1086S-40 |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Coupling Factor | 40 dB |
| Frequency (Max) | 18 GHz |
| Frequency (Min) | 11.9 GHz |
| Insertion Loss | 0.15 dB |
| Isolation | 17 dB |
| Package / Case | Module |
| Power - Max | 400 VA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
