5WM010
ActiveNTE Electronics, Inc
RES CHAS MNT 10 OHM 1% 5W
5WM010
ActiveNTE Electronics, Inc
RES CHAS MNT 10 OHM 1% 5W
Description
General part information
5WM010

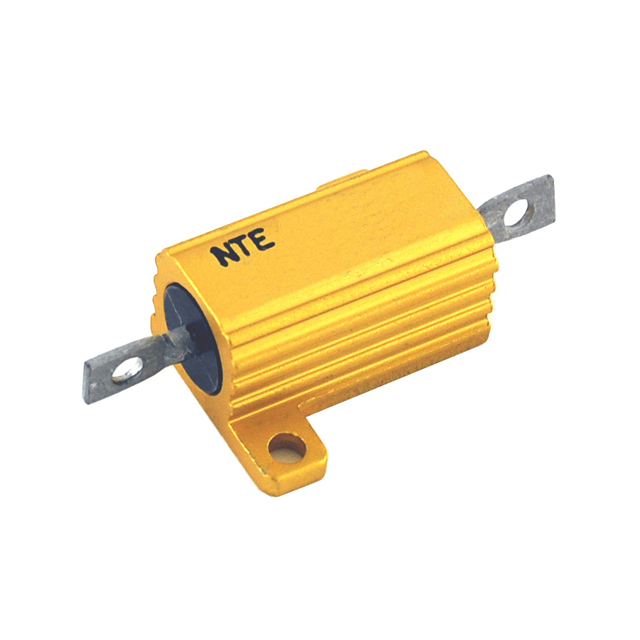

10 Ohms ±1% 5W Wirewound Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | 5WM010 |
|---|---|
| Coating | Aluminum |
| Composition | Wirewound |
| Height - Seated (Max) | 0.32 in |
| Housing Type | Aluminum |
| Lead Style | Solder Lugs |
| Mounting Feature | Flanges |
| Operating Temperature (Max) | 275 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Box, Axial |
| Power (Watts) | 5 W |
| Resistance | 10 Ohms |
| Size / Dimension Length | 0.6 in |
| Size / Dimension Width | 0.334 in |
| Tolerance | 1 % |
