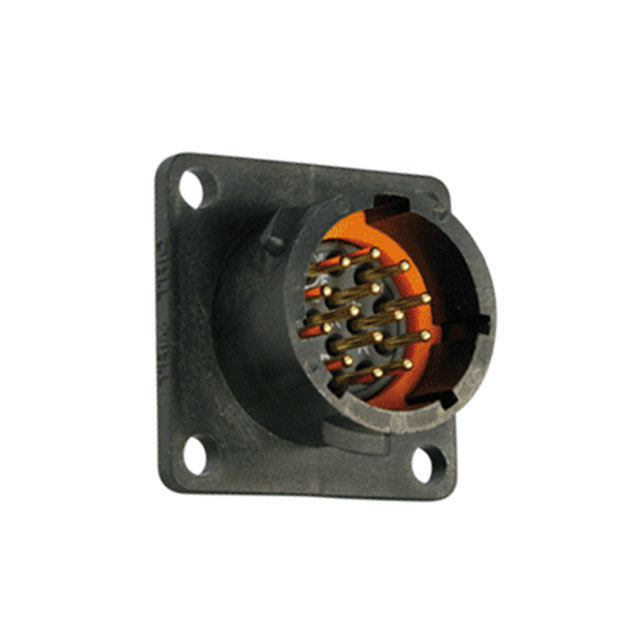

Specification	UTS012E14P

Applications	Energy, Telecommunications, Instrumentation, Lighting
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	16 µin
Contact Material	Brass
Current Rating	4.5 A
Fastening Type	Bayonet Lock
Features	UV Resistant
Ingress Protection Description	Water Resistant, Waterproof, Dust Tight
Ingress Protection IP Rating	IP69K, IP68
Insert Material	Polychloroprene
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Positions	14
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Primary Material	Plastic
Shell Material	Polybutylene Terephthalate (PBT)
Shell Size - Insert (Maximum)	14
Shell Size - Insert (Minimum)	12
Shielding	Unshielded
Termination	Solder Cup
Voltage Rating	250 V

UTS01 Series

Part	Voltage Rating	Contact Material	Connector Type	Operating Temperature (Min)	Operating Temperature (Max)	Features	Fastening Type	Number of Positions	Position Types	Termination	Material Flammability Rating	Mounting Type	Primary Material	Shell Size - Insert Width	Shell Size - Insert Length	Current Rating	Applications	Shell Material	Ingress Protection Description	Ingress Protection IP Rating	Contact Finish Thickness - Mating	Mounting Feature	Color	Insert Material	Contact Finish - Mating	Orientation	Shielding	Type	Contact Type	Contact Size	Contact Shape	Note	Housing Color	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)
Amphenol Aerospace Operations UTS014D7P	500 V	Brass	Male Pins Receptacle	-40 °C	105 °C	UV Resistant	Bayonet Lock	7	PE	Solder	UL94 V-0	Panel Mount Through Hole	Plastic	7 mm	14 mm	10 A	Energy Instrumentation Lighting Telecommunications	Polybutylene Terephthalate (PBT)	Dust Tight Water Resistant Waterproof	IP68 IP69K	16 µin	Flange	Black	Polychloroprene	Gold	N (Normal)	Unshielded
Amphenol Aerospace Operations UTS010D7S	250 V	Brass	Female Sockets Receptacle	-40 °C	105 °C	UV Resistant	Bayonet Lock	7		Solder	UL94 V-0	Panel Mount Through Hole	Plastic	7 mm	10 mm	6 A	Energy Instrumentation Lighting Telecommunications	Polybutylene Terephthalate (PBT)	Dust Tight Water Resistant Waterproof	IP68 IP69K	16 µin	Flange	Black	Polychloroprene	Gold	N (Normal)	Unshielded
Amphenol Aerospace Operations UTS0104P			Receptacle Housing	-40 °C	105 °C		Bayonet Lock	4			UL94 V-0	Panel Mount		4 mm	10 mm			Nylon Polyamide (PA)	Dust Tight Water Resistant Waterproof	IP67 IP69K		Flange				N (Normal)	Unshielded	For Male Pins	Crimp	16 S	Circular	Contacts Not Included	Black
Amphenol Aerospace Operations UTS012E10P	250 V	Brass	Male Pins Receptacle	-40 °C	105 °C	UV Resistant	Bayonet Lock	10		Solder Cup	UL94 V-0	Panel Mount	Plastic	10 mm	12 mm	4.5 A	Energy Instrumentation Lighting Telecommunications	Polybutylene Terephthalate (PBT)	Dust Tight Water Resistant Waterproof	IP68 IP69K	16 µin	Flange	Black	Polychloroprene	Gold	N (Normal)	Unshielded
Amphenol Aerospace Operations UTS014E12S	250 V	Brass	Female Sockets Receptacle	-40 °C	105 °C	UV Resistant	Bayonet Lock	12		Solder Cup	UL94 V-0	Panel Mount	Plastic	12 mm	14 mm	4.5 A	Energy Instrumentation Lighting Telecommunications	Polybutylene Terephthalate (PBT)	Dust Tight Water Resistant Waterproof	IP68 IP69K	16 µin	Flange	Black	Polychloroprene	Gold	N (Normal)	Unshielded
Amphenol Aerospace Operations UTS010E6S	250 V	Brass	Female Sockets Receptacle	-40 °C	105 °C	UV Resistant	Bayonet Lock	6		Solder Cup	UL94 V-0	Panel Mount	Plastic	6 mm	10 mm	6 A	Energy Instrumentation Lighting Telecommunications	Polybutylene Terephthalate (PBT)	Dust Tight Water Resistant Waterproof	IP68 IP69K	16 µin	Flange	Black	Polychloroprene	Gold	N (Normal)	Unshielded
Amphenol Aerospace Operations UTS010E7S	250 V	Brass	Female Sockets Receptacle	-40 °C	105 °C	UV Resistant	Bayonet Lock	7		Solder Cup	UL94 V-0	Panel Mount	Plastic	7 mm	10 mm	6 A	Energy Instrumentation Lighting Telecommunications	Polybutylene Terephthalate (PBT)	Dust Tight Water Resistant Waterproof	IP68 IP69K	16 µin	Flange	Black	Polychloroprene	Gold	N (Normal)	Unshielded
Amphenol Aerospace Operations UTS014D7S	500 V	Brass	Female Sockets Receptacle	-40 °C	105 °C	UV Resistant	Bayonet Lock	7	PE	Solder	UL94 V-0	Panel Mount Through Hole	Plastic	7 mm	14 mm	10 A	Energy Instrumentation Lighting Telecommunications	Polybutylene Terephthalate (PBT)	Dust Tight Water Resistant Waterproof	IP68 IP69K	16 µin	Flange	Black	Polychloroprene	Gold	N (Normal)	Unshielded
Amphenol Aerospace Operations UTS014E19P	250 V	Brass	Male Pins Receptacle	-40 °C	105 °C	UV Resistant	Bayonet Lock	19		Solder Cup	UL94 V-0	Panel Mount	Plastic			4 A	Energy Instrumentation Lighting Telecommunications	Polybutylene Terephthalate (PBT)	Dust Tight Water Resistant Waterproof	IP68 IP69K	16 µin	Flange	Black	Polychloroprene	Gold	N (Normal)	Unshielded							19	14 S
Amphenol Aerospace Operations UTS014D19PX	250 V	Brass	Male Pins Receptacle	-40 °C	105 °C	UV Resistant	Bayonet Lock	19		Solder	UL94 V-0	Panel Mount Through Hole	Plastic			4 A	Energy Instrumentation Lighting Telecommunications	Polybutylene Terephthalate (PBT)	Dust Tight Water Resistant Waterproof	IP68 IP69K	16 µin	Flange	Black	Polychloroprene	Gold	X	Unshielded							19	14 S
