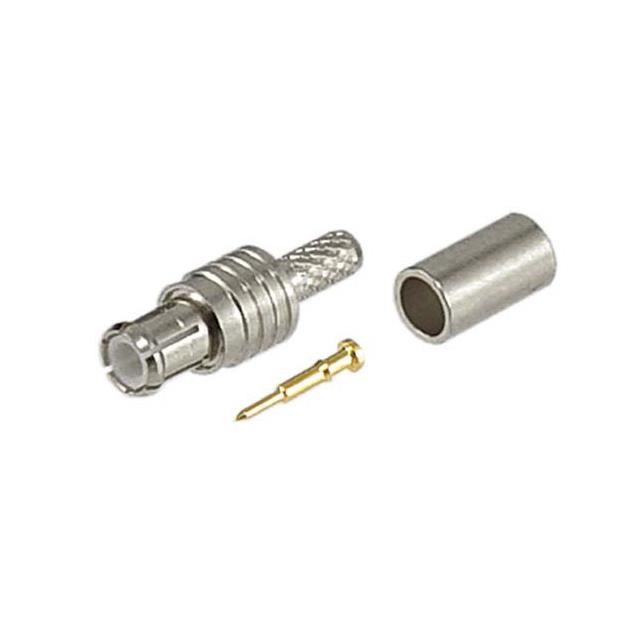

AMM-1102
ActivePasternack
CONMCX MALE STR CRIMP LMR100
AMM-1102
ActivePasternack
CONMCX MALE STR CRIMP LMR100
Description
General part information
AMM-1102
MCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | AMM-1102 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-316, LMR-100 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | MCX |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Tetrafluoroethylene (TFE) |
| Fastening Type | Snap-On |
| Frequency - Max | 6000 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
| Voltage Rating | 335 V |
