JA3D-C1001059

Active

Jabil Inc.

PC 1500 FR, 2.85MM, 1KG SPOOL

Search across all available documentation for this part.

Active

Jabil Inc.

PC 1500 FR, 2.85MM, 1KG SPOOL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	JA3D-C1001059	JA3D Series

Color	Natural	Black, Natural, White, Gray, Blue
Density	1.18 g/cm³	1.05 - 1.24 g/cmł
Density	-	1.12 - 1.18 g/cm³
Density	-	1.05 - 1.1 g/cm³
Features	Wear & Friction, Flame-Retardant	ESD Safe, Reinforced, Elastomeric, Wear & Friction, Wear & Friction, Flame-Retardant
Filament Diameter [diameter]	2.85 mm	1.75 - 2.85 mm
Filament Diameter [diameter]	0.112 in	0.07 - 0.112 in
Filament Material	PC (Polycarbonate)	PETG (Polyethylene Terephthalate Glycol-modified), ABS (Acrylonitrile Butadiene Styrene), TPE (Thermoplastic Elastomer), TPU (Thermoplastic Polyurethane), PA (Polyamide), PC (Polycarbonate)
Flex Strength	93.9 Mpa	59.8 - 110 Mpa
Operating Temperature	-	230 - 295 °C
Operating Temperature [Max]	305 °C	230 - 305 °C
Operating Temperature [Min]	285 °C	220 - 285 °C
Tensile Strength	61 Mpa	6 - 66 Mpa

PETG 0800 ESD, 1.75MM, 0.75KG SP

Part	Features	Filament Material	Filament Diameter [diameter]	Filament Diameter [diameter]	Color	Flex Strength	Density [Max]	Density [Min]	Operating Temperature [custom]	Tensile Strength	Density	Operating Temperature [Min]	Operating Temperature [Max]
Jabil Inc. JA3D-C1001248	ESD Safe	PETG (Polyethylene Terephthalate Glycol-modified)	1.75 mm	0.07 in
Jabil Inc. JA3D-C1001068	Reinforced	ABS (Acrylonitrile Butadiene Styrene)	1.75 mm	0.07 in	Black	59.8 Mpa	1.12 g/cm³	1.1 g/cm³	275 °C, 295 °C	35.3 Mpa
Jabil Inc. JA3D-C1001135	Elastomeric, Wear & Friction	TPE (Thermoplastic Elastomer)	2.85 mm	0.112 in	Black					6 Mpa	1.05 g/cmł	240 °C	250 °C
Jabil Inc. JA3D-C1001137	Elastomeric, Wear & Friction	TPE (Thermoplastic Elastomer)	1.75 mm	0.07 in	Natural				230 °C, 270 °C	11 Mpa	1.05 g/cmł
Jabil Inc. JA3D-C1001141	Elastomeric, Wear & Friction	TPE (Thermoplastic Elastomer)	1.75 mm	0.07 in	Black		1.18 g/cm³	1.05 g/cm³	230 °C, 270 °C	11 Mpa
Jabil Inc. JA3D-C1001031	Elastomeric, Wear & Friction	TPU (Thermoplastic Polyurethane)	2.85 mm	0.112 in	Natural						1.2 g/cm³	220 °C	230 °C
Jabil Inc. JA3D-C1001029		PETG (Polyethylene Terephthalate Glycol-modified)	2.85 mm	0.112 in	Natural						1.24 g/cmł	240 °C	250 °C
Jabil Inc. JA3D-C1001280		PA (Polyamide)	2.85 mm	0.112 in	Black
Jabil Inc. JA3D-C1001269		PA (Polyamide)	2.85 mm	0.112 in
Jabil Inc. JA3D-C1001093	Elastomeric, Wear & Friction	TPE (Thermoplastic Elastomer)	2.85 mm	0.112 in	Natural					6 Mpa	1.05 g/cmł	240 °C	250 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

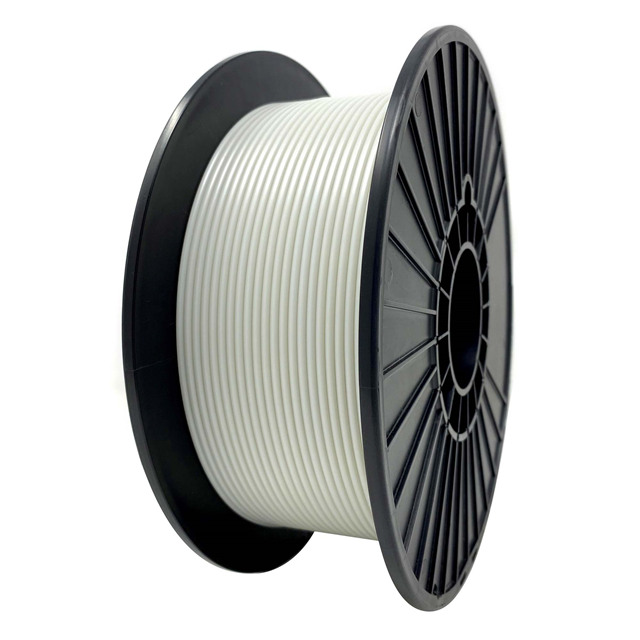

3D Printing Filament Natural PC (Polycarbonate) 0.112" (2.85mm)
