0293565.T
ActiveLITTELFUSE
FUSE - PAL 2935 ATP 32V SLOBLO 65A 10PC/ BOX ROHS COMPLIANT: YES
0293565.T
ActiveLITTELFUSE
FUSE - PAL 2935 ATP 32V SLOBLO 65A 10PC/ BOX ROHS COMPLIANT: YES
Description
General part information
0293565.T

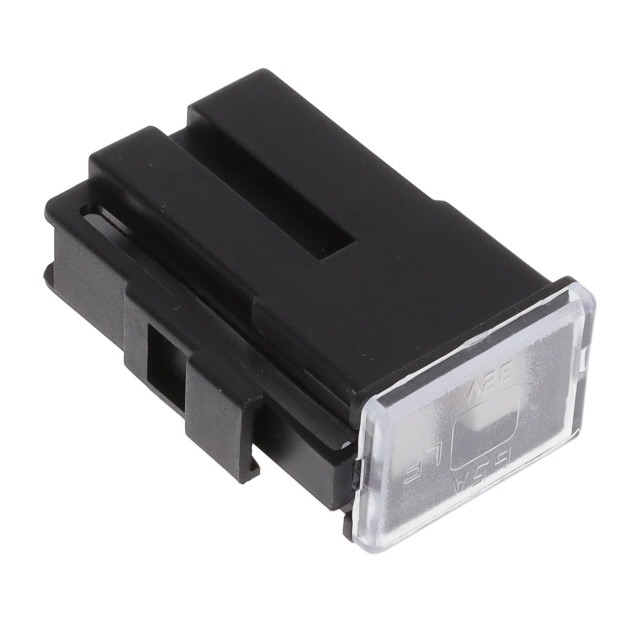

65 A AC 32 V DC Fuse Automotive Requires Holder Auto Link
Technical Specifications
Parameters and characteristics for this part
| Specification | 0293565.T |
|---|---|
| Color | Black |
| Current Rating | 65 A |
| Fuse Type | Automotive |
| Mounting Type | Requires Holder |
| Package / Case | Auto Link |
| Response Time | Slow Blow |
| Size / Dimension Height | 1.205 in |
| Size / Dimension Length | 0.906 in |
| Size / Dimension Width | 0.646 in |
| Voltage Rating - DC | 32 V |
