1742630-1
ActiveTE Connectivity AMP Connectors

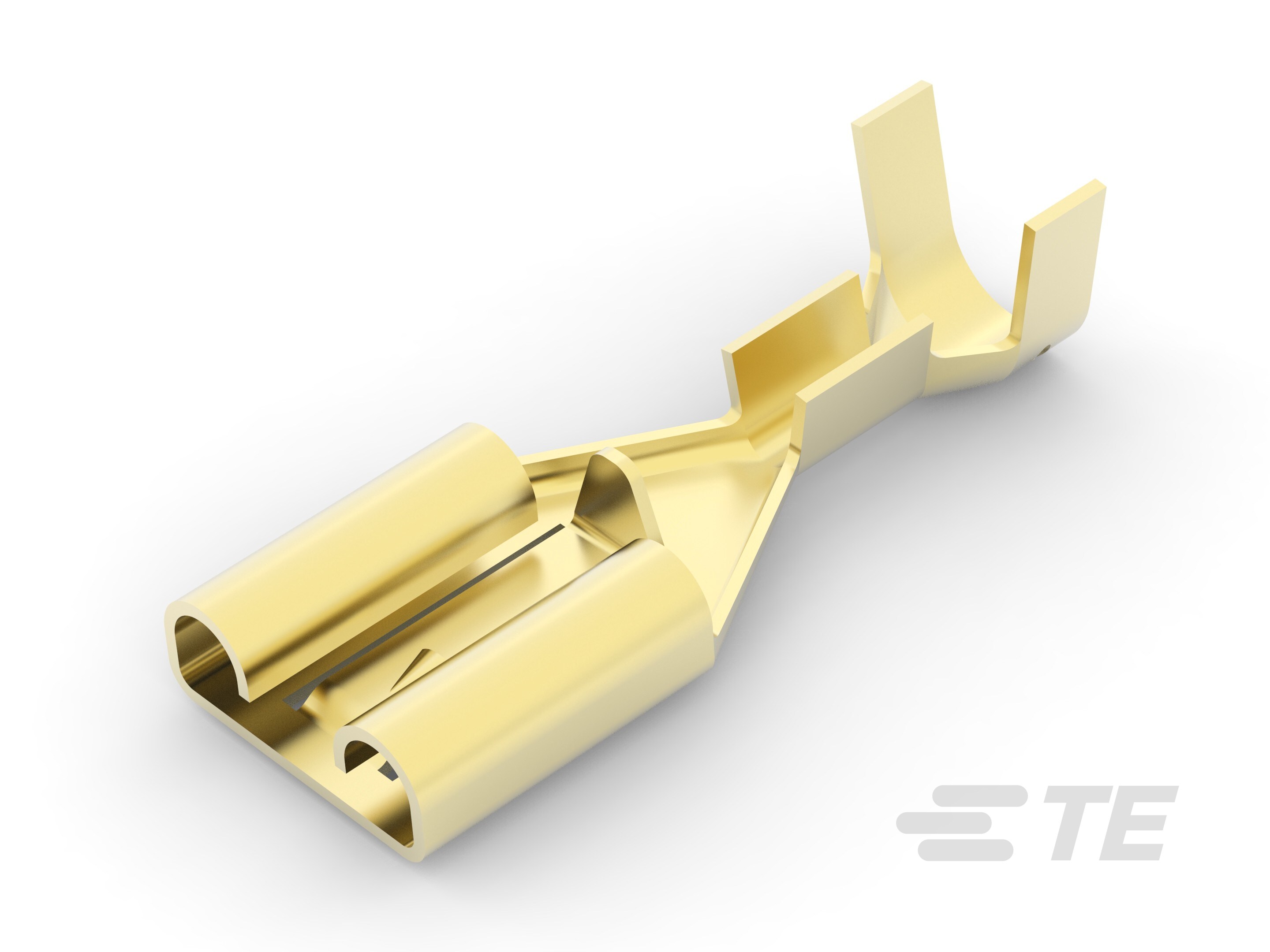

RAST 5 POSILOCK MKIII,22-18 AW
1742630-1
ActiveTE Connectivity AMP Connectors
RAST 5 POSILOCK MKIII,22-18 AW
Description
General part information
RAST 5D Series
Receptacle Contact, 240 VAC, 240 VDC, Locking Lance Contact Retention, Discrete Wire, 22 – 18 AWG, .321 – .811 mm² Wire, 642 – 1624 CMA, RAST 5D
Technical Specifications
Parameters and characteristics for this part
| Specification | 1742630-1 |
|---|---|
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Insulation Diameter (Max) | 0.155 in |
| Insulation Diameter (Min) | 0.09 in |
| Length - Overall | 0.771 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 0.293 in |
| Tab Thickness | 0.032 in |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 18 AWG |
