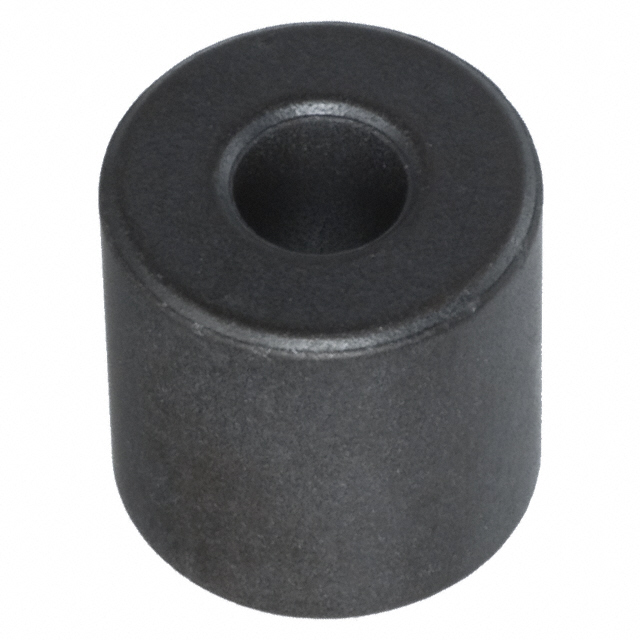

HFB150070-200
ActiveLaird Technologies EMI
FERRITE CORE 242 OHM SOLID
HFB150070-200
ActiveLaird Technologies EMI
FERRITE CORE 242 OHM SOLID
Description
General part information
HFB150070-200
Solid Free Hanging Ferrite Core 242Ohm @ 300MHz ID 0.275" Dia (6.99mm) OD 0.591" Dia (14.99mm) Length 1.125" (28.58mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | HFB150070-200 |
|---|---|
| Design | Solid |
| Impedance | 242 Ohm |
| Inner Dimension (Diameter) | 0.275 in |
| Length | 1.125 in |
| Material | HF |
| Mounting Type | Free Hanging |
| Outer Dimension (Diameter) | 0.591 in |
| Type | Round |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
