LCCA30364-FT1.5
ActivePasternack
COAX CBL BNC TO SMA 18"
LCCA30364-FT1.5
ActivePasternack
COAX CBL BNC TO SMA 18"
Description
General part information
LCCA30364-FT1.5

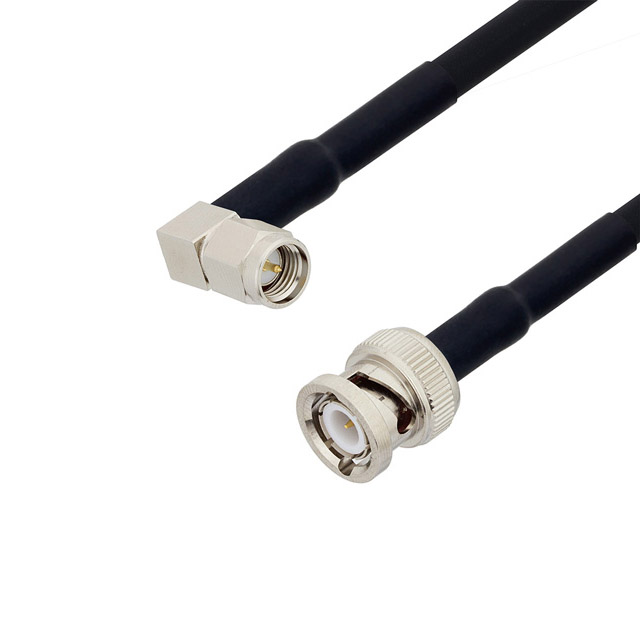

Cable Assembly Coaxial BNC to SMA RG-223 18.00" (457.20mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30364-FT1.5 |
|---|---|
| 1st Connector | BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, SMA Plug |
| 2nd Connector Mounting Type | Right Angle, Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-223, 223, RG |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 4 GHz |
| Length | 18 in |
| Overall Impedance | 50 Ohms |
| Style | SMA, BNC |
