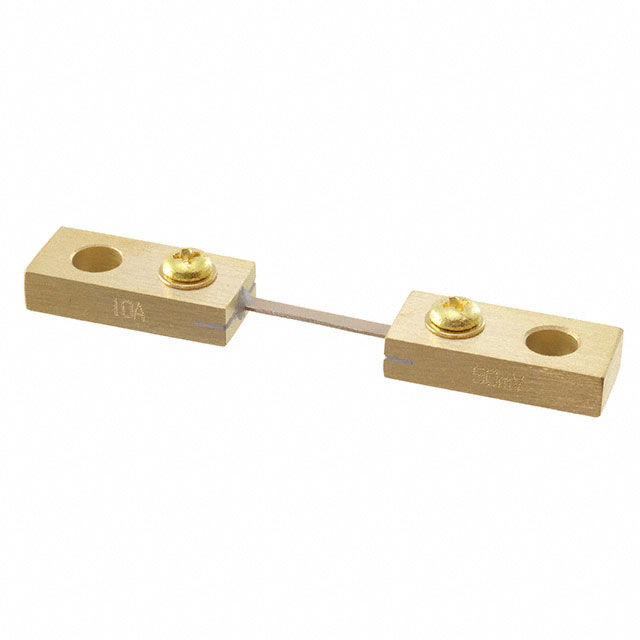

RSW-30-50
ActiveBourns Inc.
RES CHAS MNT 0.00167 OHM 0.25%
RSW-30-50
ActiveBourns Inc.
RES CHAS MNT 0.00167 OHM 0.25%
Description
General part information
RSW-30-50
1.67 mOhms ±0.25% Metal Element Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | RSW-30-50 |
|---|---|
| Composition | Metal Element |
| Features | Safety, Pulse Withstanding, Current Sense, Non-Inductive, Flame Proof |
| Height - Seated (Max) | 0.281 in |
| Mounting Feature | Flanges |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 30 °C |
| Package / Case | Rectangular Case |
| Resistance | 1.67 mOhms |
| Size / Dimension Length | 3.13 in |
| Size / Dimension Width | 0.5 in |
| Temperature Coefficient | 15 ppm/°C |
| Tolerance | 0.25 % |
