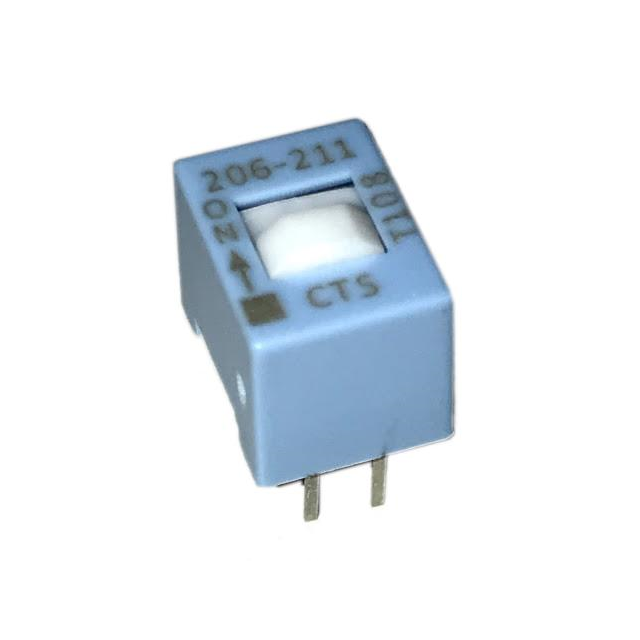

206-211
ActiveCTS Electrocomponents
SWITCH SLIDE DIP DPST 0.05A 24V
206-211
ActiveCTS Electrocomponents
SWITCH SLIDE DIP DPST 0.05A 24V
Description
General part information
206-211
Dip Switch DPST 1 Position Through Hole Slide (Standard) Actuator 50mA 24VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 206-211 |
|---|---|
| Actuator Level | Raised |
| Actuator Type | Slide (Standard) |
| Body Material | Plastic |
| Circuit | DPST |
| Contact Finish | Gold |
| Current Rating | 50 mA |
| Electrical Life (Cycles) | 10000 Cycles |
| Height Above Board | 0.334 in |
| Length | 0.286 in |
| Mounting Type | Through Hole |
| Number of Positions | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.1 in |
| Pitch Type | Full |
| Termination Style | PC Pin |
| Voltage Rating | 24 V |
| Washable | No |
