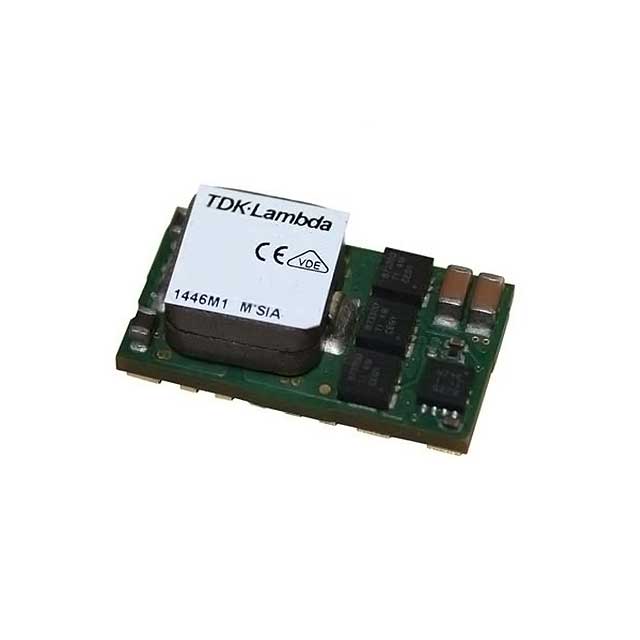

IJA12035A007V-001-R
ObsoleteTDK Corporation
DC DC CONVERTER 0.6-3.3V 115W
IJA12035A007V-001-R
ObsoleteTDK Corporation
DC DC CONVERTER 0.6-3.3V 115W
Description
General part information
IJA12035A007V-001-R
Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.6 ~ 3.3V 35A 8V - 14V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | IJA12035A007V-001-R |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Enable, Active Low |
| Current - Output (Max) | 35 A |
| Efficiency | 94 % |
| Features | OCP, SCP, Remote On/Off, OTP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 18-SMD Module |
| Size / Dimension Height | 0.38 in |
| Size / Dimension Length | 0.9 in |
| Size / Dimension Width | 0.5 in |
| Type | Digital, Non-Isolated PoL Module |
| Voltage - Input (Max) | 14 V |
| Voltage - Input (Min) | 8 V |
| Voltage - Output 1 (Max) | 3.3 V |
| Voltage - Output 1 (Min) | 0.6 V |
