CRJ018-1-TH
ActiveSame Sky (Formerly CUI Devices)
RJ COUPLER, 2 PORT, 8P8C, 6U, MO
CRJ018-1-TH
ActiveSame Sky (Formerly CUI Devices)
RJ COUPLER, 2 PORT, 8P8C, 6U, MO
Description
General part information
CRJ018-1-TH

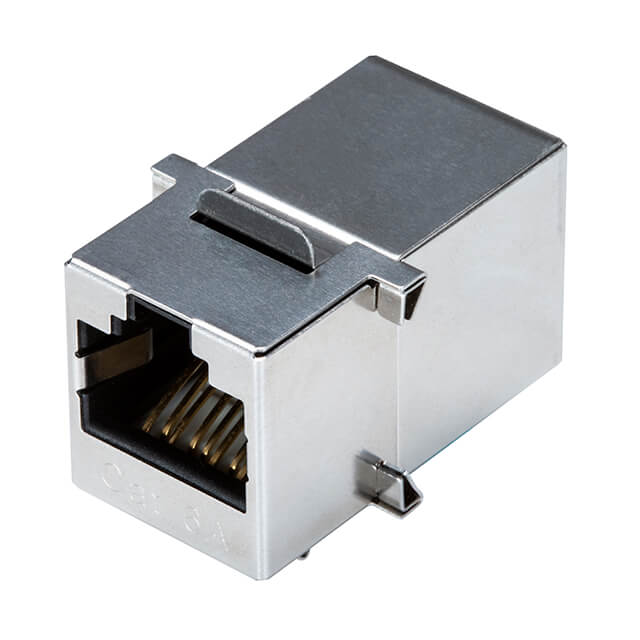

Modular Coupler Connector Jack, 8p8c (RJ45) To Jack, 8p8c (RJ45) Shielded
Technical Specifications
Parameters and characteristics for this part
| Specification | CRJ018-1-TH |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 6 µin |
| Contact Material | Phosphor Bronze |
| Convert From (Adapter End) | 8p8c (RJ45), Jack |
| Convert To (Adapter End) | Jack, 8p8c (RJ45) |
| Housing Material | PBT, Polybutylene Terephthalate |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Shell Material, Finish | Polybutylene Terephthalate (PBT) |
| Shield Material | Stainless Steel |
| Shielding | Shielded |
| Type | Coupler |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
