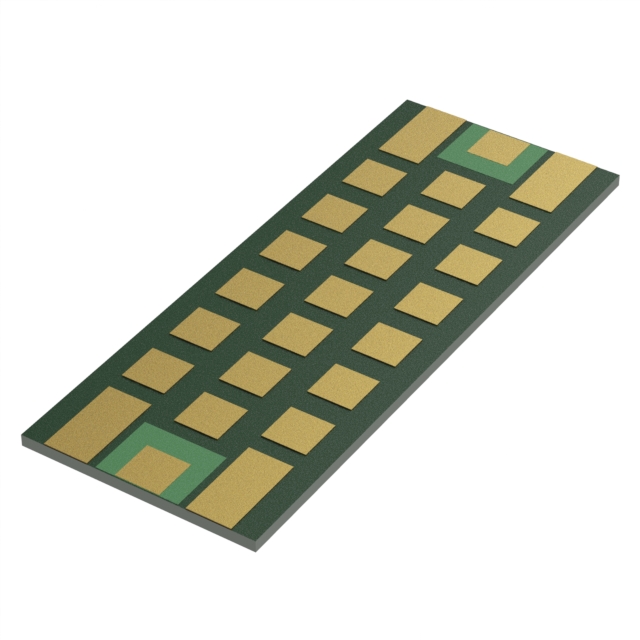

BP0DA0585A700
ObsoleteKYOCERA AVX
RF FILTER BAND PASS 585MHZ 25SMD
BP0DA0585A700
ObsoleteKYOCERA AVX
RF FILTER BAND PASS 585MHZ 25SMD
Description
General part information
BP0DA0585A700
585MHz Center Frequency Band Pass RF Filter (Radio Frequency) 284MHz Bandwidth 5dB 25-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | BP0DA0585A700 |
|---|---|
| Bandwidth | 284 MHz |
| Filter Type | Band Pass |
| Frequency (Center) | 585 MHz |
| Height (Max) | 0.04 in |
| Insertion Loss | 5 dB |
| Mounting Type | Surface Mount |
| Package / Case | 25-SMD, No Lead |
| Ripple (dB) | 1.5 dB |
| Size / Dimension Length | 0.402 in |
| Size / Dimension Width | 0.156 in |
