HR-4/3FAU(4.5AH)
ActiveFDK America, Inc.
BATTERY NIMH 1.2V 4.1AH 4/3FA
HR-4/3FAU(4.5AH)
ActiveFDK America, Inc.
BATTERY NIMH 1.2V 4.1AH 4/3FA
Description
General part information
HR-4/3FAU(4.5AH)

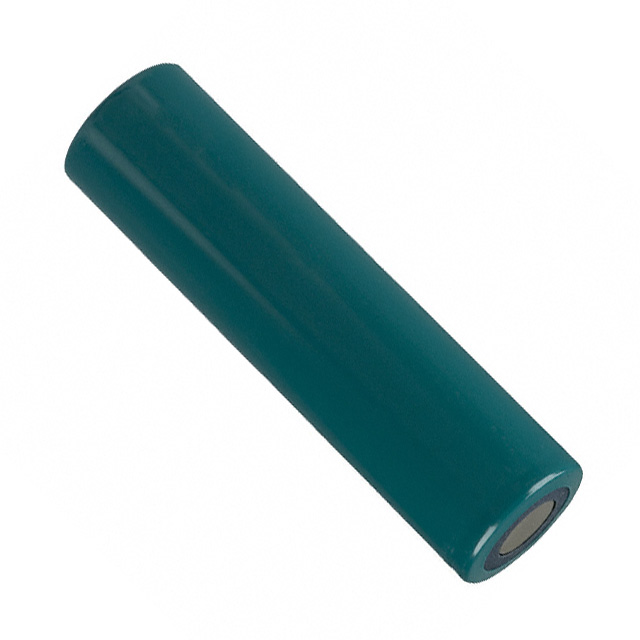

4/3FA 1.2 V Nickel Metal Hydride Battery Rechargeable (Secondary) 4.1Ah
Technical Specifications
Parameters and characteristics for this part
| Specification | HR-4/3FAU(4.5AH) |
|---|---|
| Battery Cell Size | 4/3FA |
| Battery Chemistry | Nickel Metal Hydride |
| Capacity (Charge) | 4.1 Ah |
| Discharge Rate (Current) | 820 mA |
| Size / Dimension Diameter | 0.71 in |
| Size / Dimension Height | 2.66 in |
| Standard Charge Current | 450 mA |
| Standard Charge Time | 16 Hrs |
| Termination Style | Flat Top (Non-Extending) |
| Voltage - Rated | 1.2 VAC |
| Weight | 62.6 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
