Description
General part information

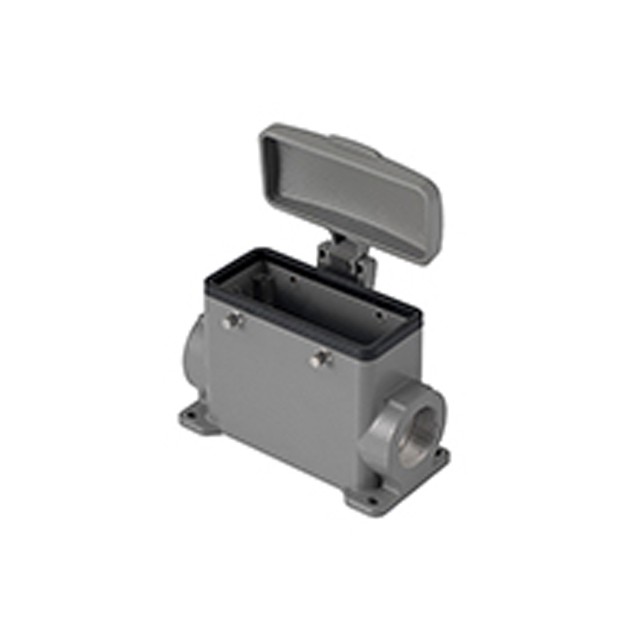

0936012429
16B STD SURF.HOUS. W/COV 4PGS HC
Technical Specifications
Parameters and characteristics for this part
| Specification | 0936012429 |
|---|---|
| Connector Type | Base - Box Mount |
| Features | Cover |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP66 |
| Lock Location | Locking Clip (2) on Hood |
| Size | 16B |
| Size / Dimension Height | 3.031 in |
| Size / Dimension Length | 4.606 in |
| Size / Dimension Width | 2.244 in |
| Style | Side Entry |
| Thread Size | PG21 |
