02208094
ActiveBopla Enclosures
BOX PLASTIC GRAY 3.86"L X 2.52"W
02208094
ActiveBopla Enclosures
BOX PLASTIC GRAY 3.86"L X 2.52"W
Description
General part information
02208094

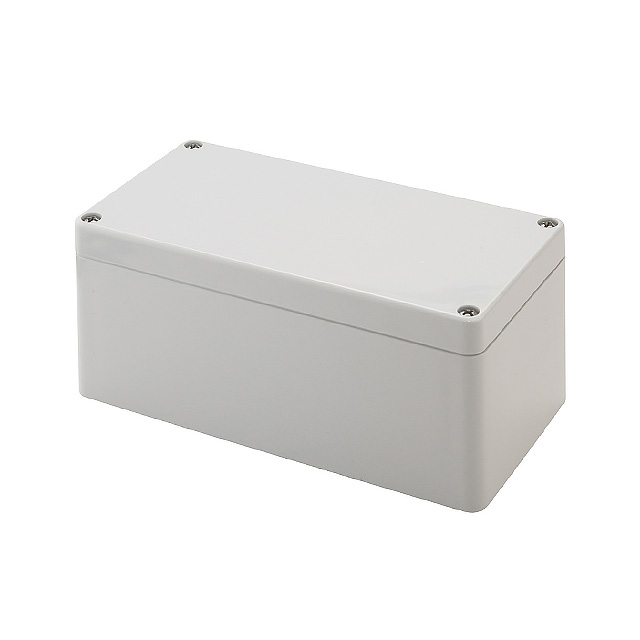

Box Plastic, Polycarbonate Gray Cover Included 3.858" L x 2.520" W (98.00mm x 64.00mm) X 1.433" (36.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 02208094 |
|---|---|
| Area (L x W) | 9.72 in² |
| Color | Gray |
| Container Type | Box |
| Design | Cover Included |
| Features | Watertight, Flame Retardant, PCB Supports |
| Height | 1.433 in |
| Material | Polycarbonate (PC), Plastic, Polycarbonate |
| Material Flammability Rating | UL94 V-0 |
| Ratings | NEMA 4X, IP65 |
| Size / Dimension Length | 3.858 in |
| Size / Dimension Width | 2.52 in |
| Thickness | 0.157 in |
| Weight | 0.201 lb |
