PE3CA1028-3
ActivePasternack

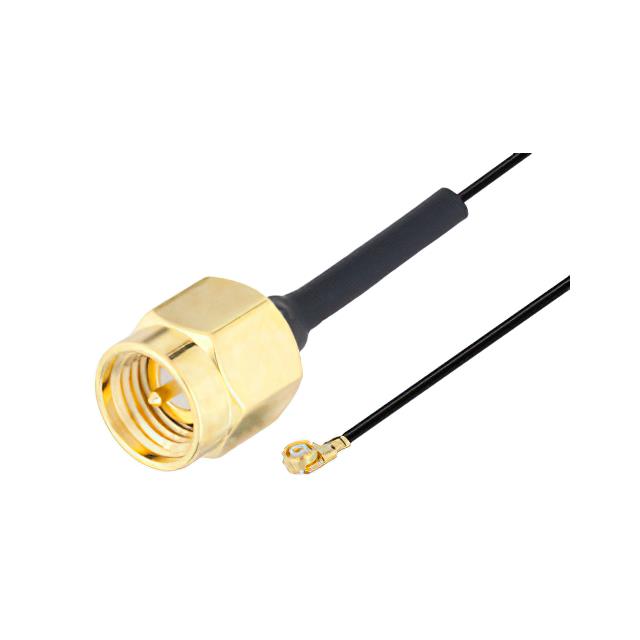

SMA MALE TO UMCX 2.1 PLUG CABLE
PE3CA1028-3
ActivePasternack
SMA MALE TO UMCX 2.1 PLUG CABLE
Description
General part information
PE3CA1028-3
Cable Assembly Coaxial SMA to UMCX 0.81mm OD Coaxial Cable 3.000" (76.20mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | PE3CA1028-3 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | UMCX Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Outer Diameter | 0.81 mm |
| Cable Type | Coaxial Cable, 0.81mm OD Coaxial Cable, OD Coaxial Cable |
| Cable Type Size | 0.81 mm |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 3 " |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA, UMCX |
