Description
General part information
5308 Series

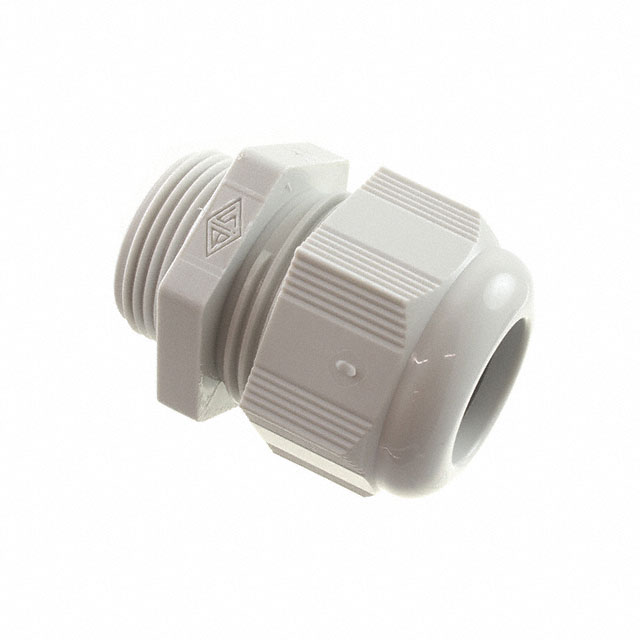

Cable Gland Polyamide (PA), Nylon M25x1.5 Gray
Technical Specifications
Parameters and characteristics for this part
| Specification | 5308 953 |
|---|---|
| Color | Gray |
| Ingress Protection Description | Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP68 |
| Material | Nylon, Polyamide (PA) |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -25 °C |
| Outside Cable Diameter (Max) | 0.709 in |
| Outside Cable Diameter (Min) | 0.354 in |
| Panel Hole Size | 0.984 in |
| Thread Diameter | 25 mm |
| Thread Length | 0.394 in |
| Thread Pitch | 1.5 mm |
| Type | Cable Gland |
