CDM814-06A-MT-F810-67
ActiveSame Sky (Formerly CUI Devices)
6 PINS, PANEL MOUNT, CRIMPED PC
CDM814-06A-MT-F810-67
ActiveSame Sky (Formerly CUI Devices)
6 PINS, PANEL MOUNT, CRIMPED PC
Description
General part information
CDM814-06A-MT-F810-67

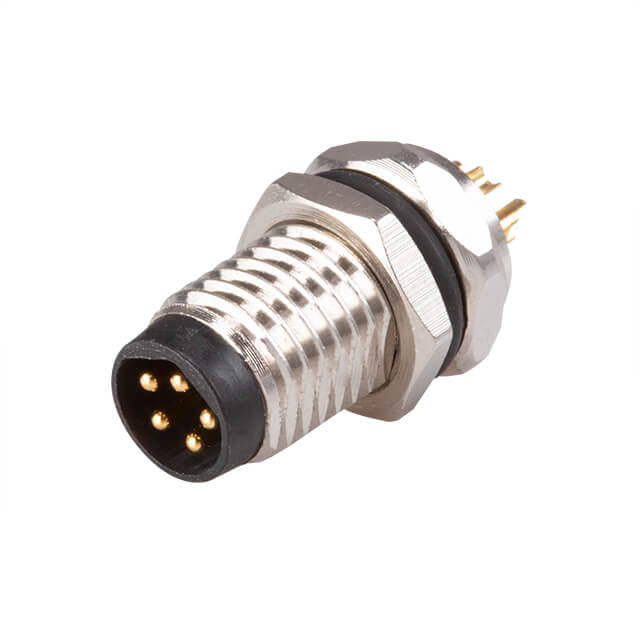

6 Position Circular Connector Plug, Male Pins Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | CDM814-06A-MT-F810-67 |
|---|---|
| Color | Silver |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating | 1.5 A |
| Fastening Type | Threaded |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | Polyamide, Nylon 6/6, PA66 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Positions | 6 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -25 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | M8-6 |
| Shielding | Unshielded |
| Termination | Solder Cup |
| Voltage Rating | 30 V |
