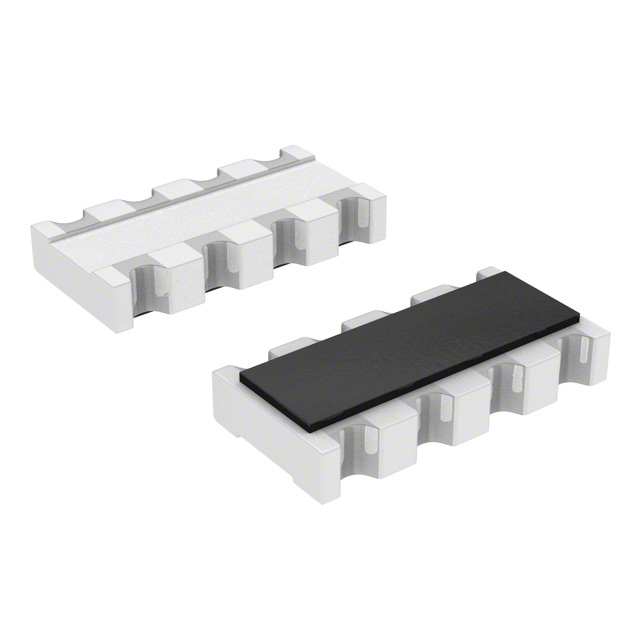

CRB3A4E104JT
ObsoleteKYOCERA AVX
RES ARRAY 4 RES 100K OHM 1206
CRB3A4E104JT
ObsoleteKYOCERA AVX
RES ARRAY 4 RES 100K OHM 1206
Description
General part information
CRB3A4E104JT
100k Ohm ±5% 62.5mW Power Per Element Isolated 4 Resistor Network/Array ±250ppm/°C 1206 (3216 Metric), Concave, Long Side Terminals
Technical Specifications
Parameters and characteristics for this part
| Specification | CRB3A4E104JT |
|---|---|
| Circuit Type | Isolated |
| Height - Seated (Max) | 0.028 in |
| Mounting Type | Surface Mount |
| Number of Pins | 8 |
| Number of Resistors | 4 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Concave, Long Side Terminals, 1206 (3216 Metric) |
| Package Features | Concave, Long Side Terminals |
| Package Name | 1206 |
| Power Per Element | 62.5 mW |
| Resistance | 100 kOhm |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.063 in |
| Temperature Coefficient | 250 ppm/°C |
| Temperature Coefficient (Highest) | 250 ppm/°C |
| Temperature Coefficient (Lowest) | -250 ppm/°C |
| Tolerance | 5 % |
